CERPUR - Grain Cleaning Machines

CERPUR CP1

↓

25 seconds

CERPUR CP1

Bestseller

Air sifter and sieve box

Flexibly suitable for all bulk materials
Air sifter with speed-controlled radial fan
Separates light components, oversized grain, undersized grain, and cleaned product

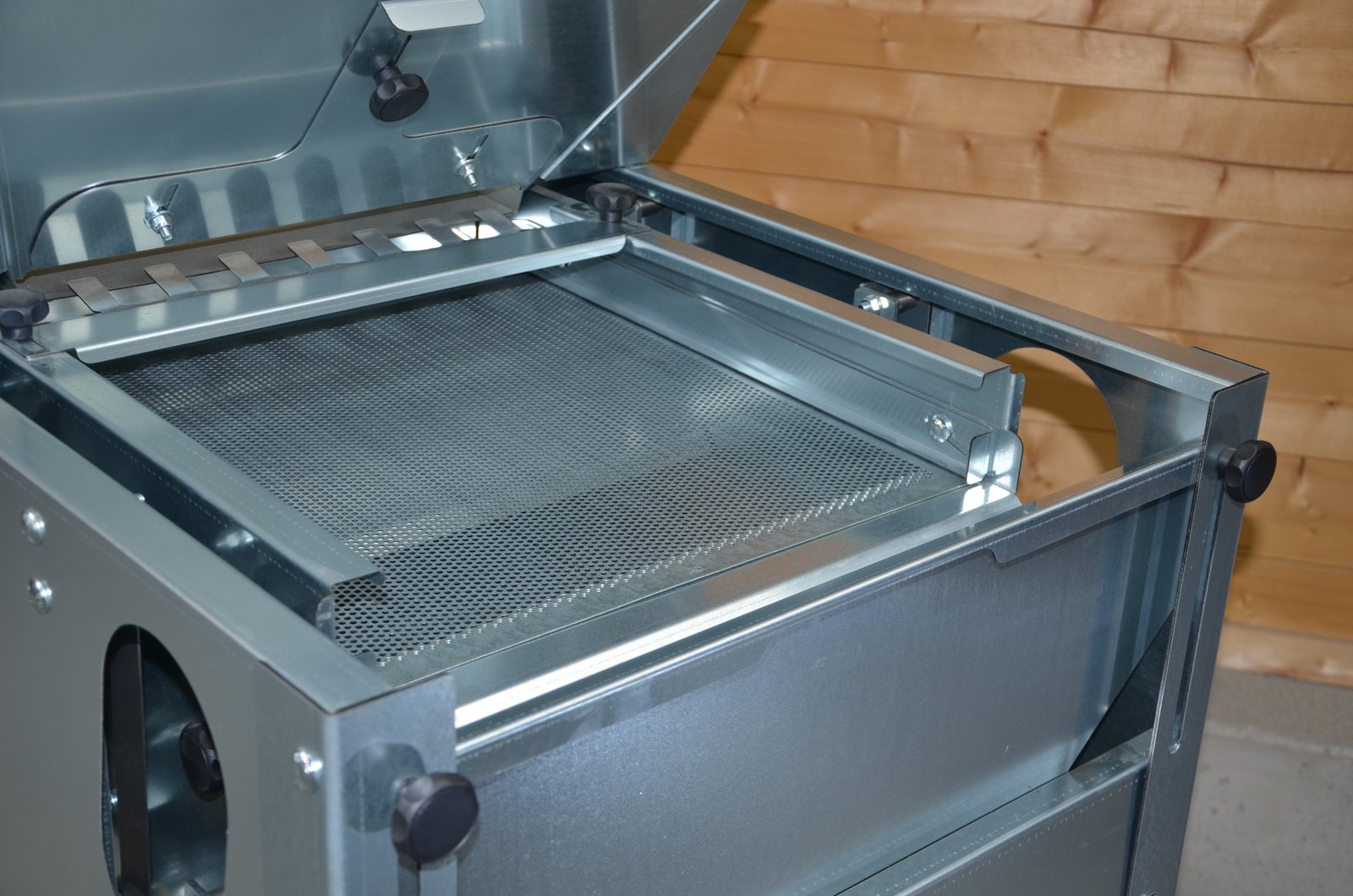

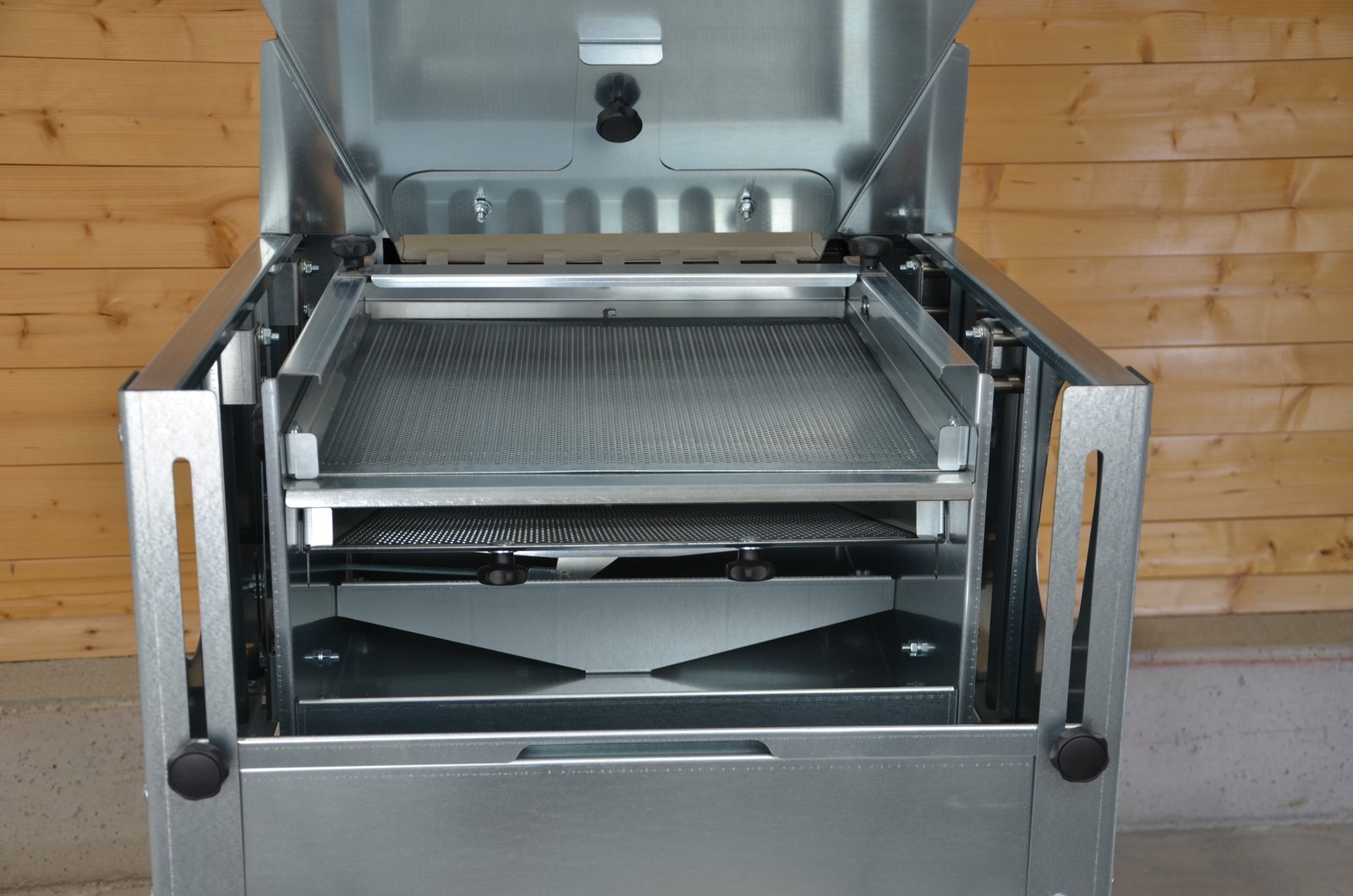

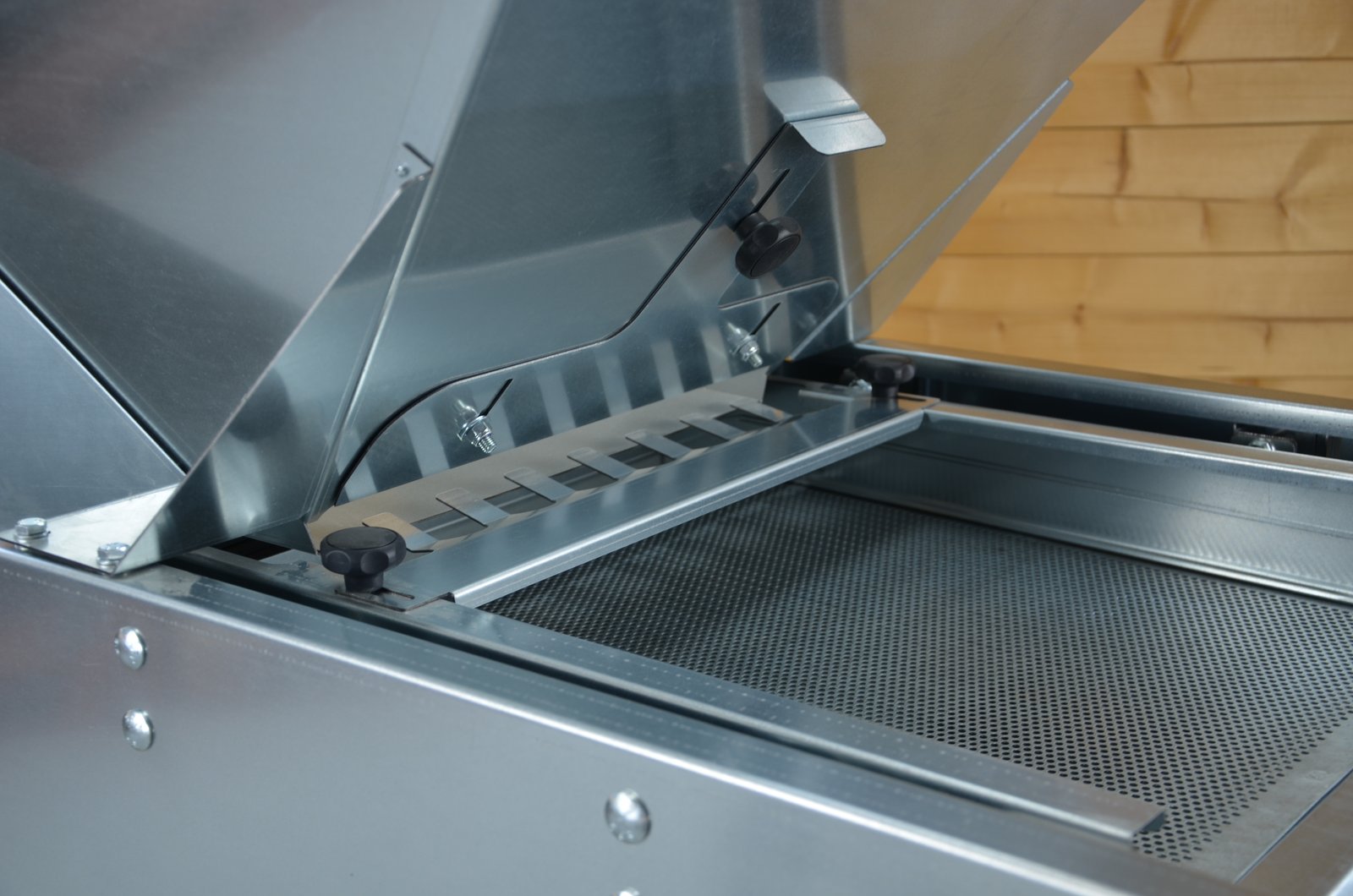

Sieve box with top and bottom sieve including sieve cleaning system
All cleaning parameters are adjustable

Excl. VAT

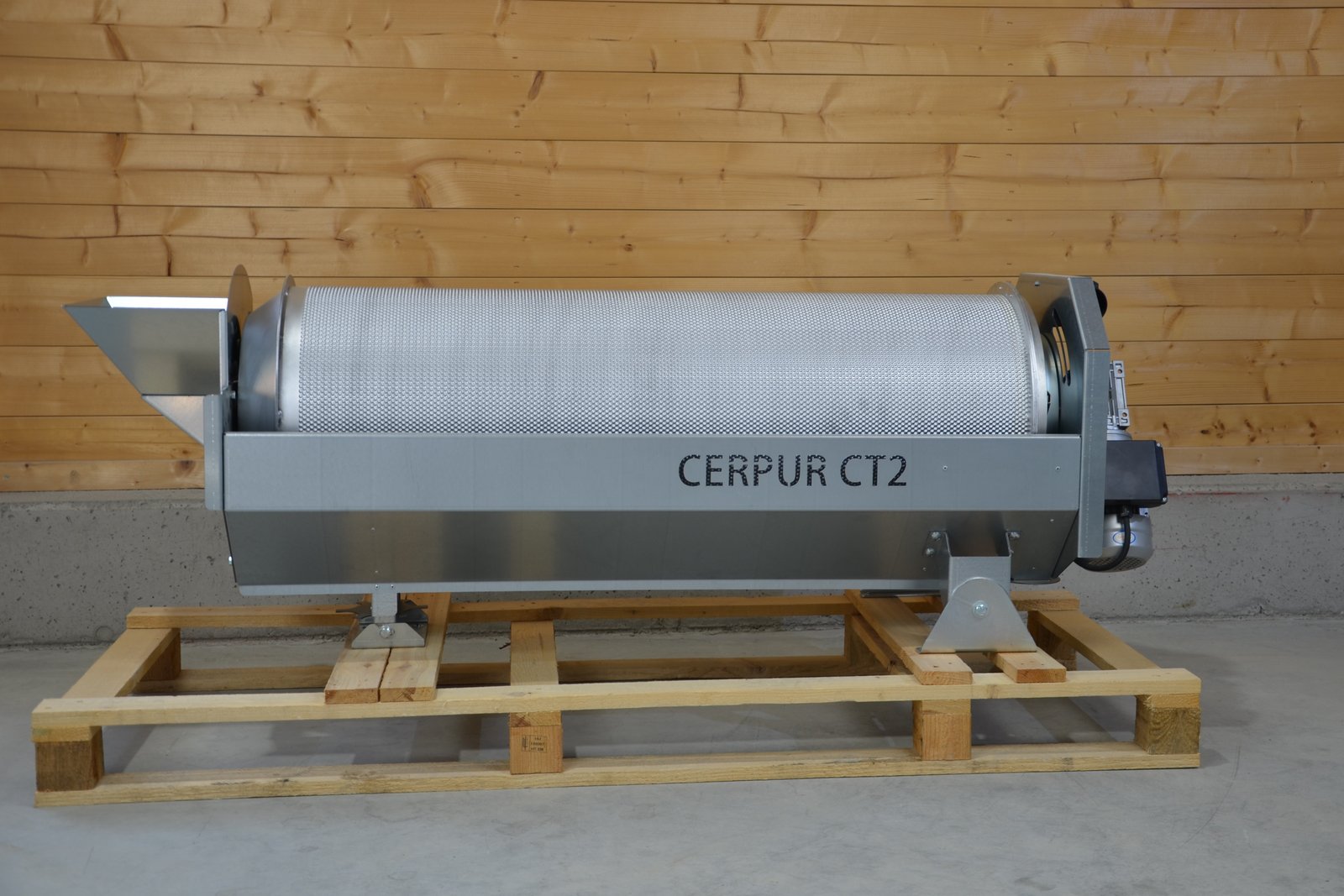

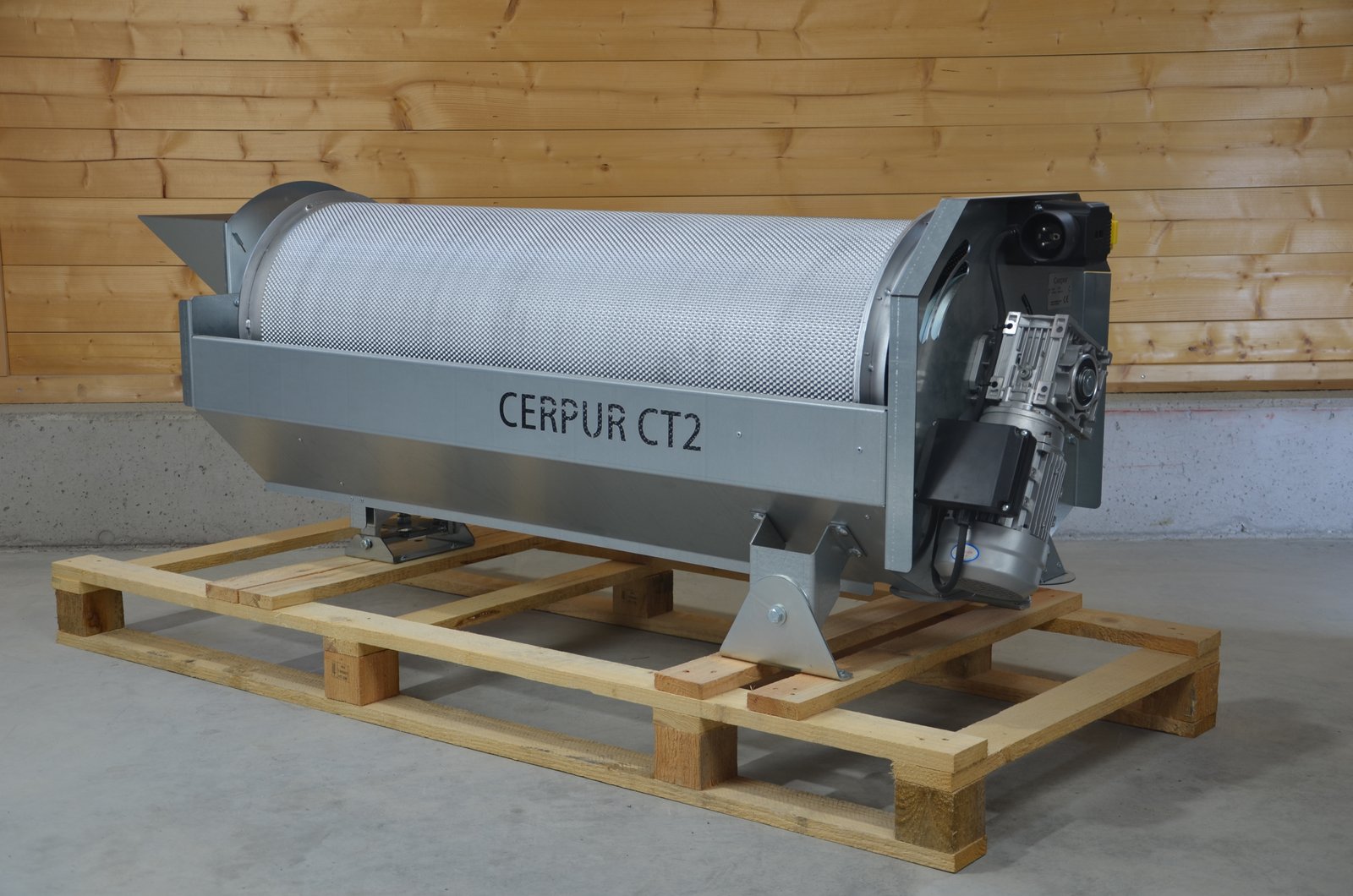

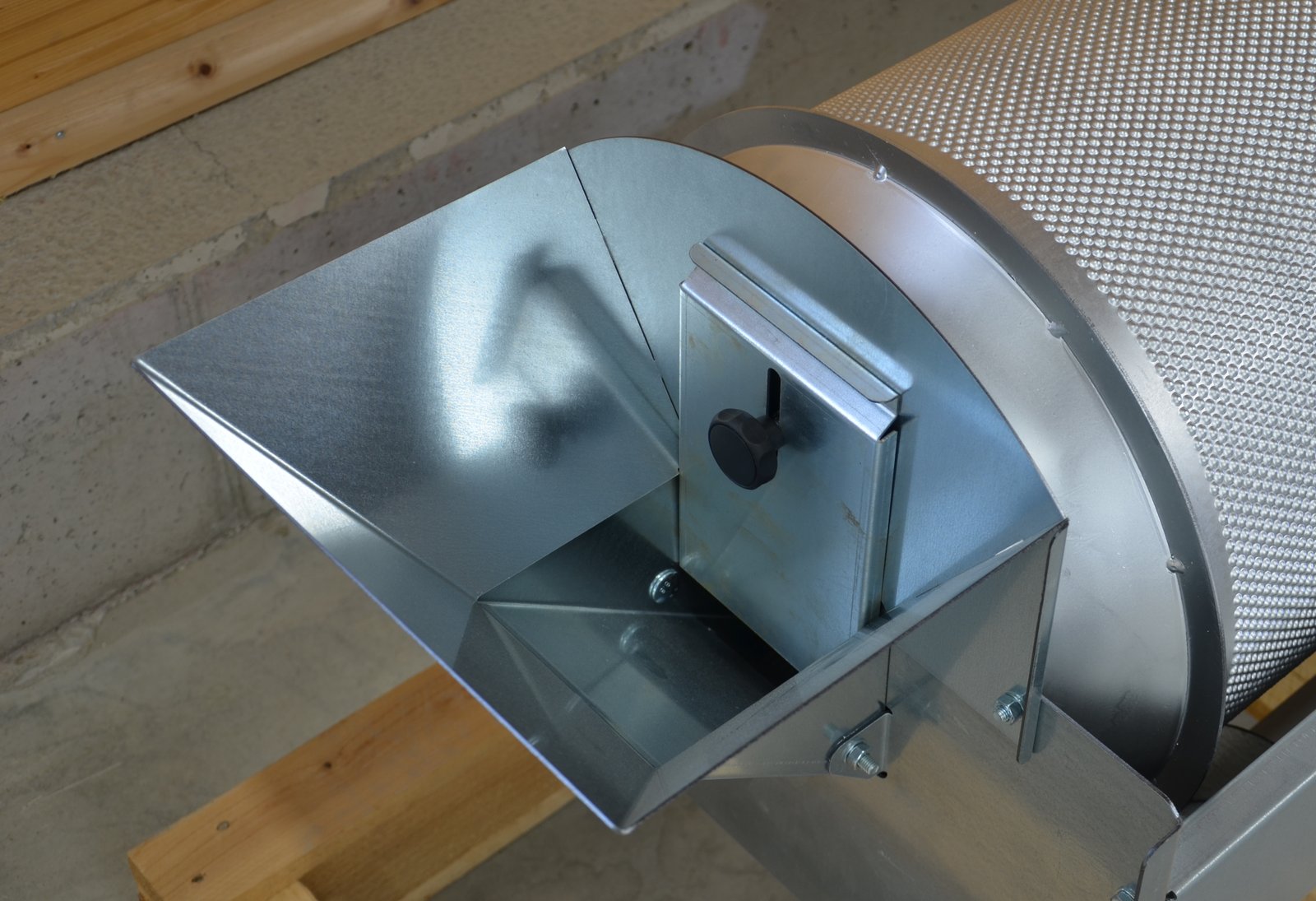

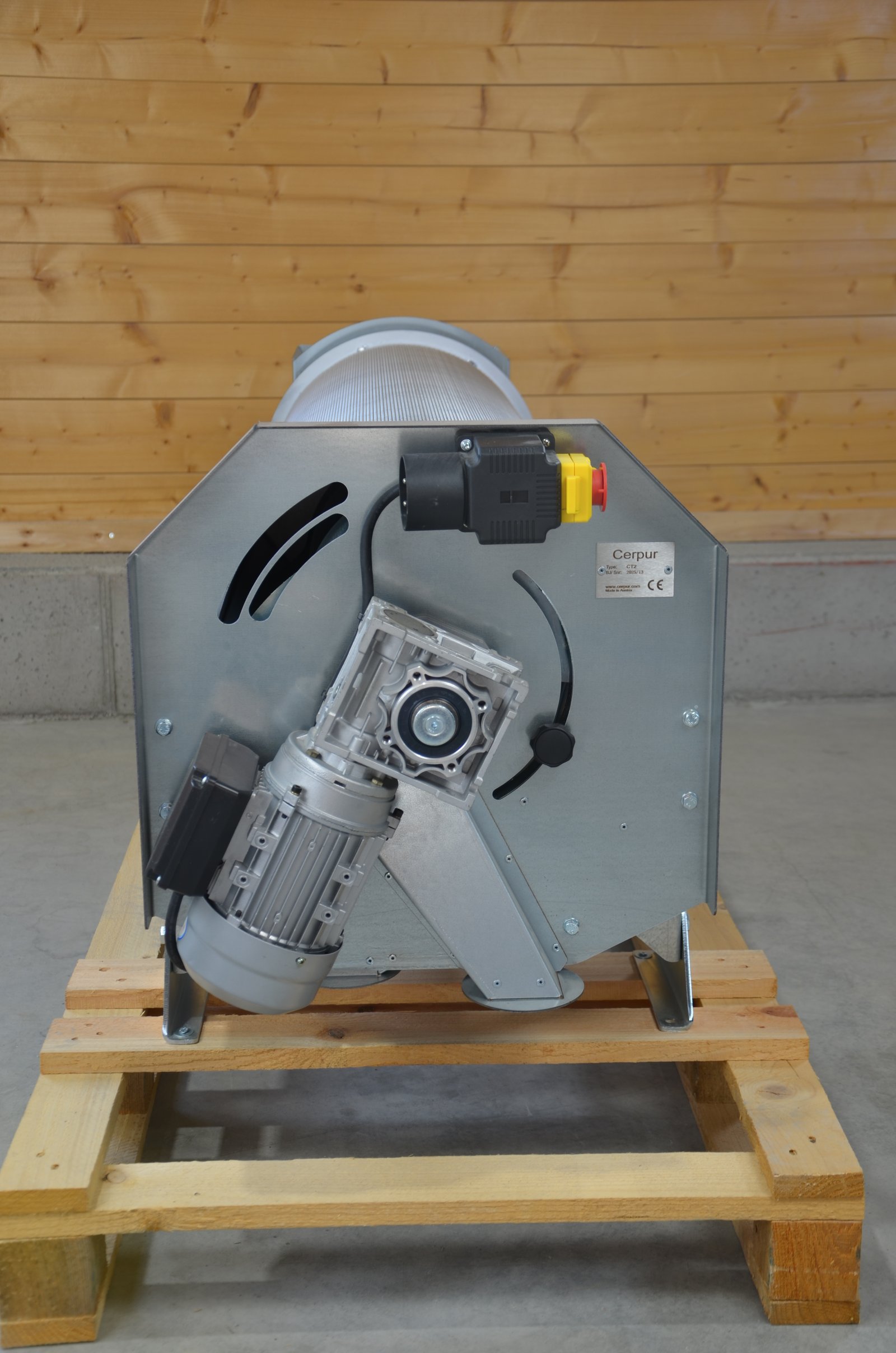

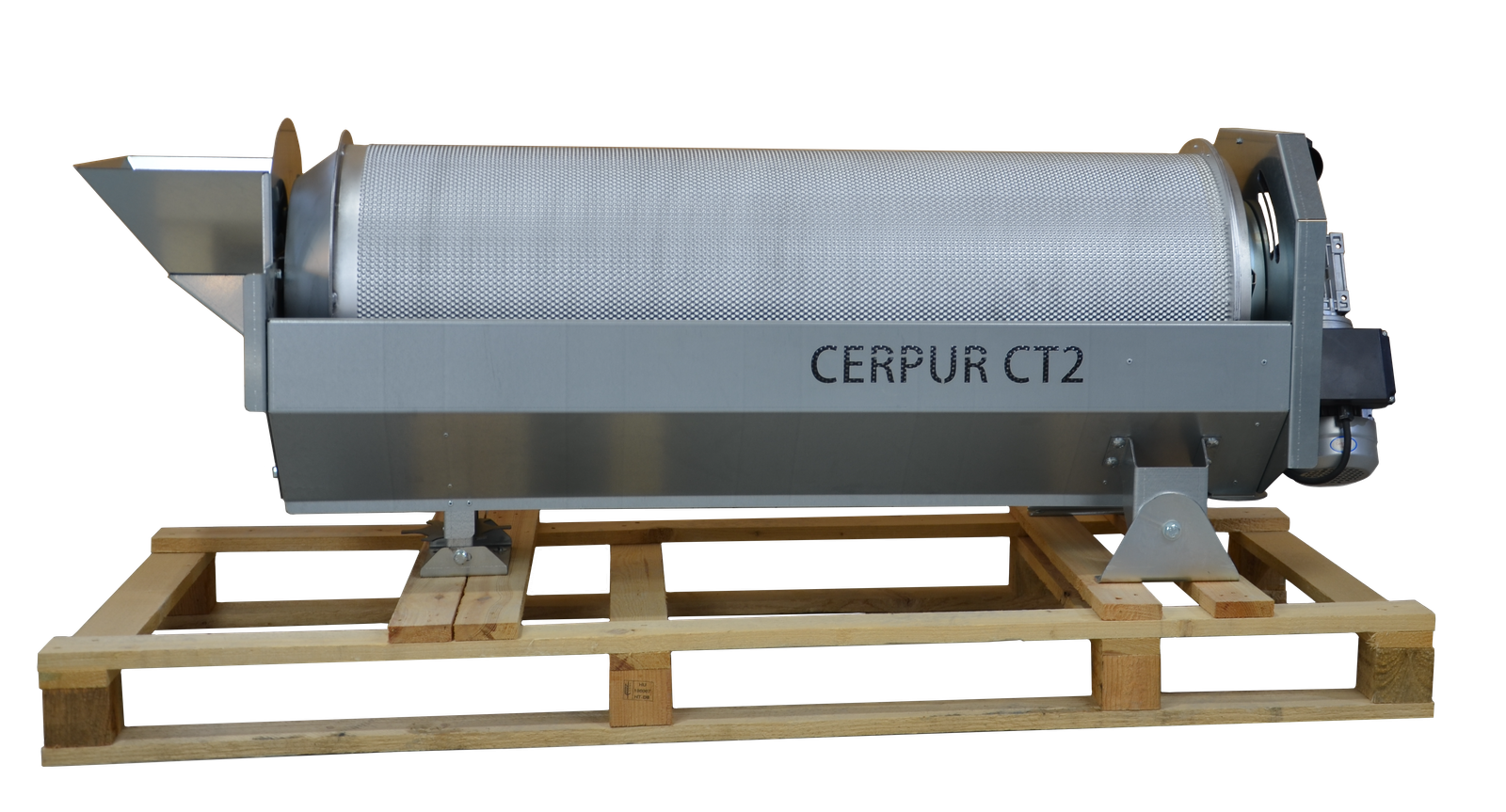

CERPUR CT2

Trieur

Separates broken and round grains from long grains
Up to 500 kg/h cleaning performance
Stepless tiltable trieur drum
Ideal addition to the CERPUR CP1 for marketable food-grade products

Excl. VAT

Variant

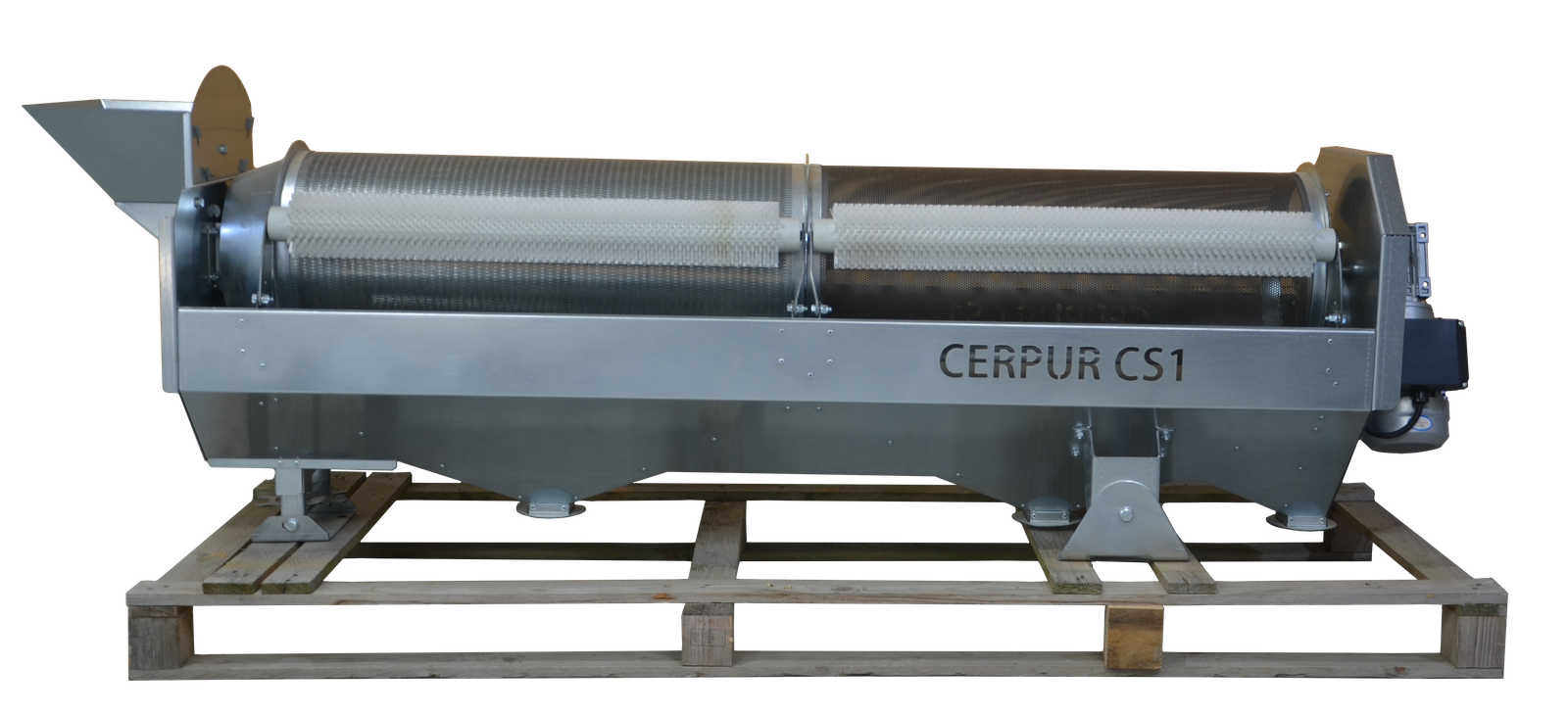

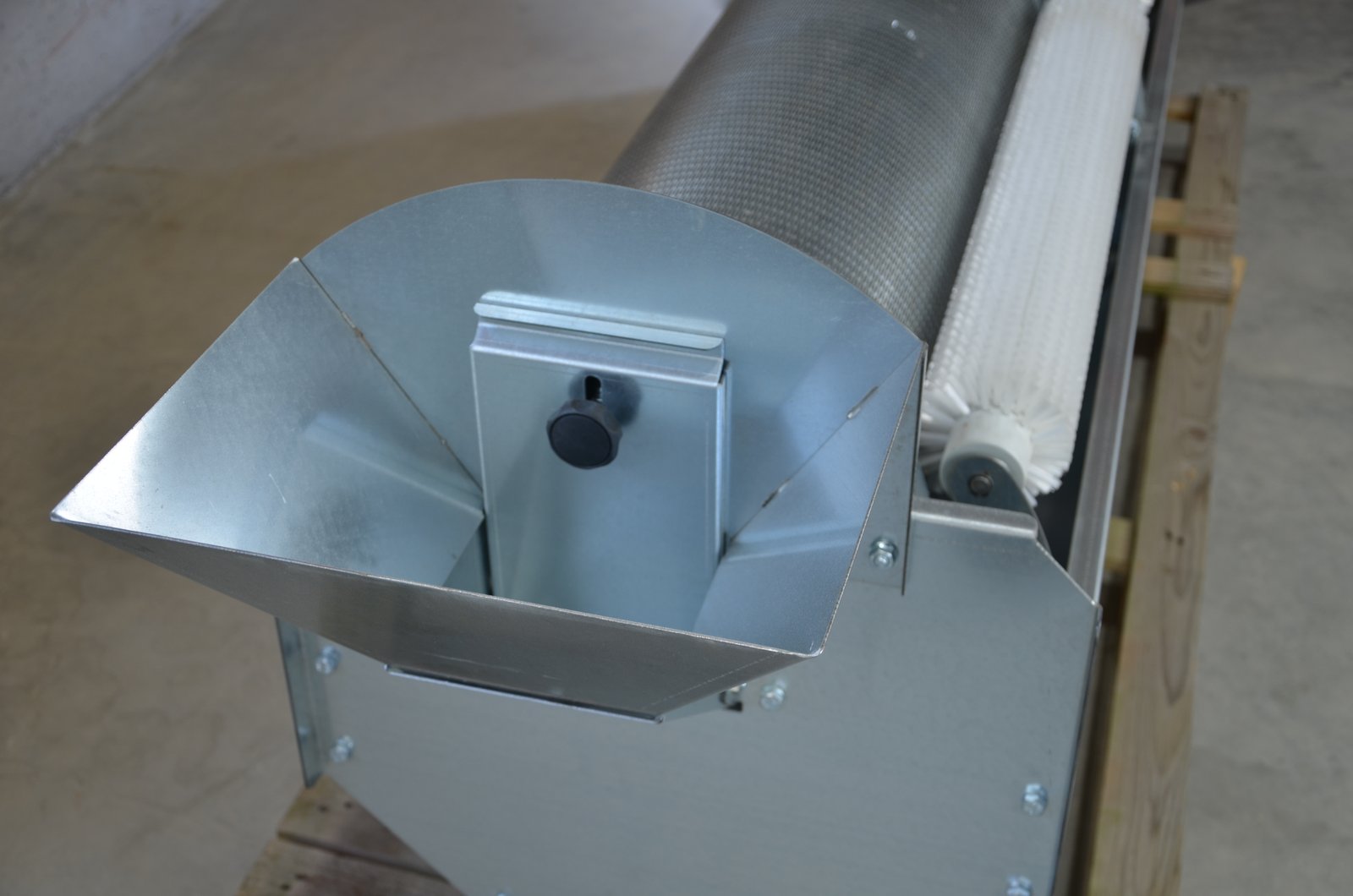

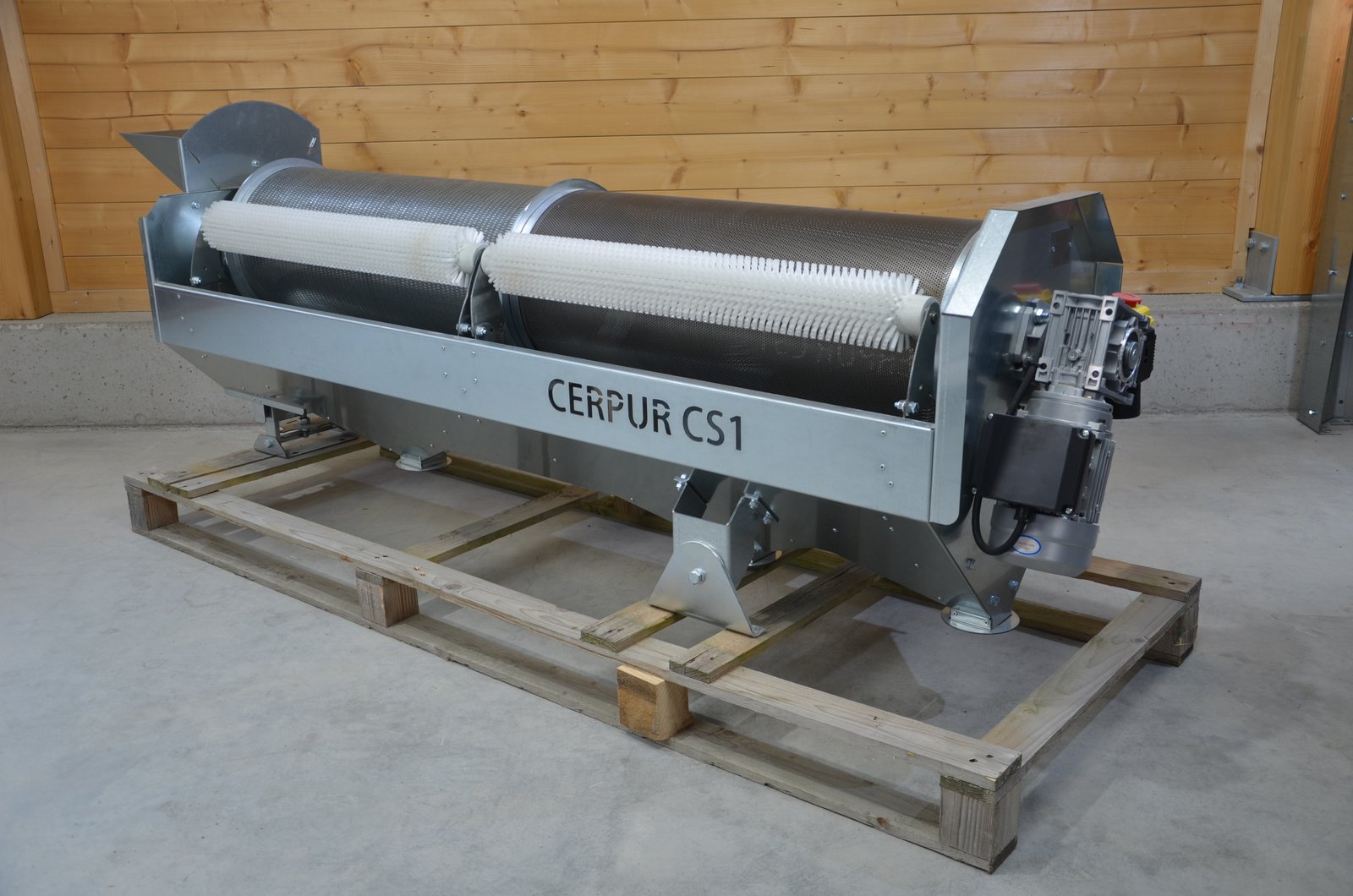

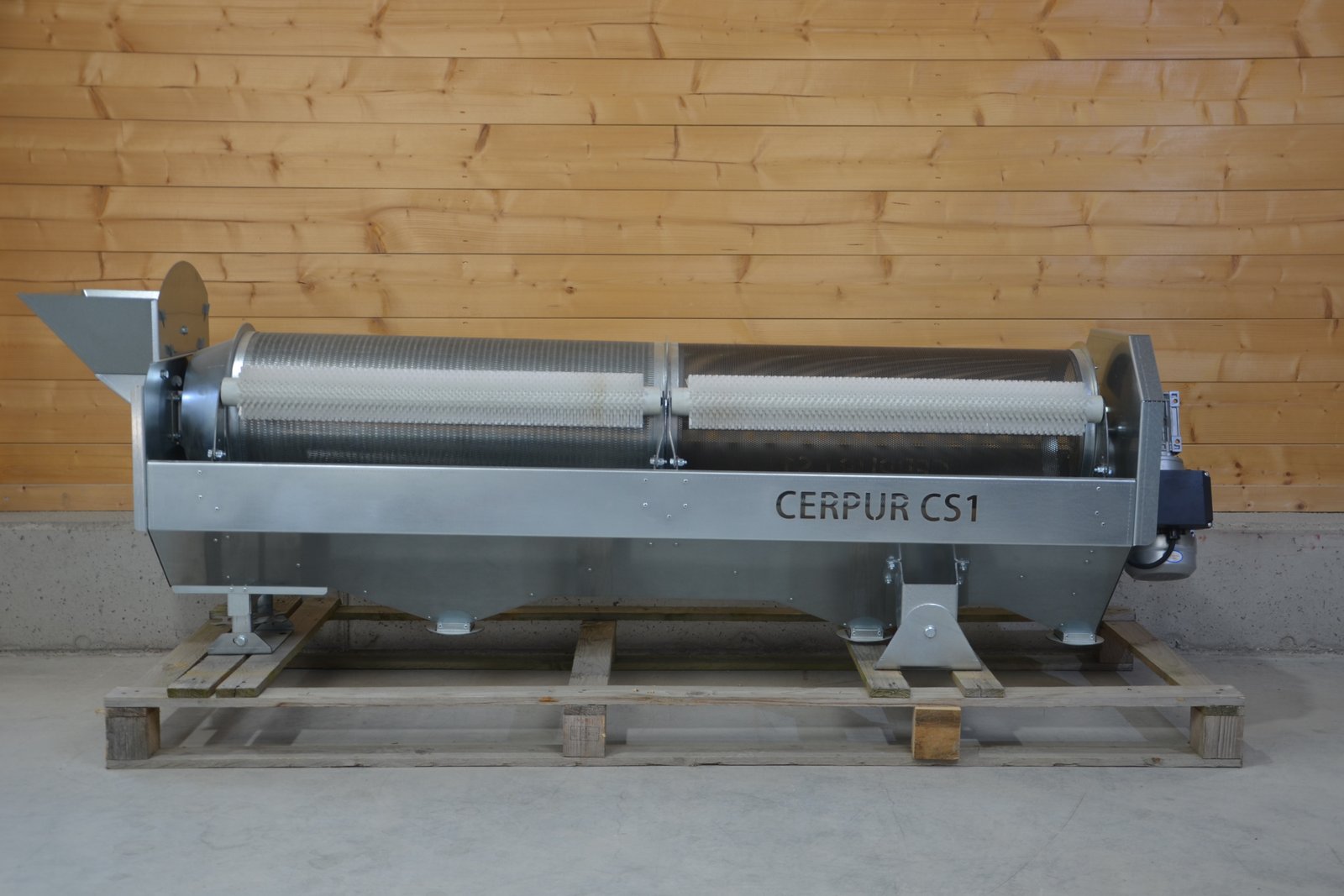

CERPUR CS1

Drum Sieve

Suitable for all bulk goods
Separates into three fractions: undersized grain, oversized grain, and cleaned product

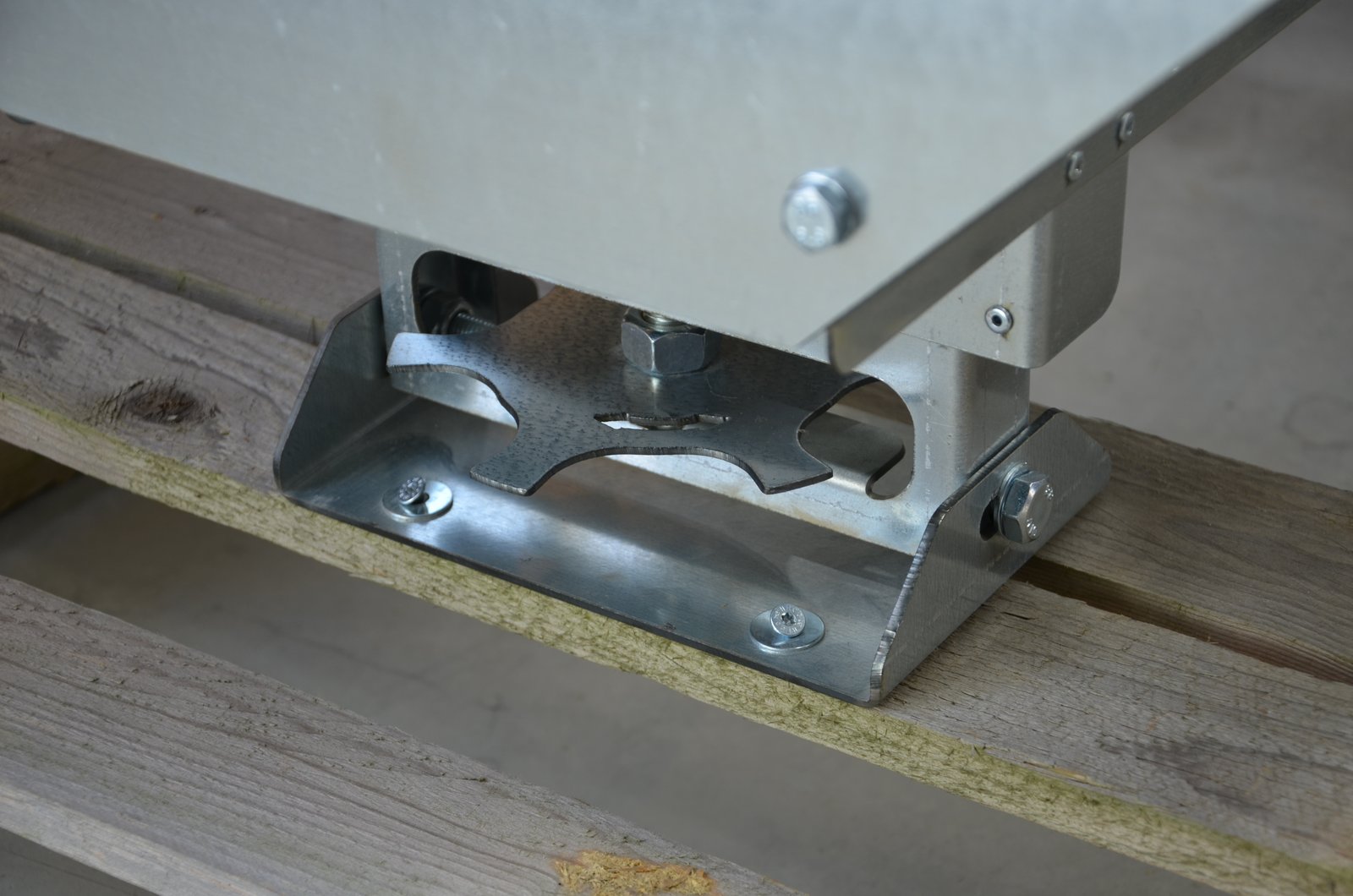

Flow rate adjustable via drum inclination
Cleans up to 1000 kg/h

Excl. VAT

Sieve for CERPUR CP1

Excl. VAT

Hole type

Size (mm)

Indented Drum for CERPUR CT2

Excl. VAT

Size (mm)

Sieve for CERPUR CS1

Excl. VAT

Hole type

Size (mm)

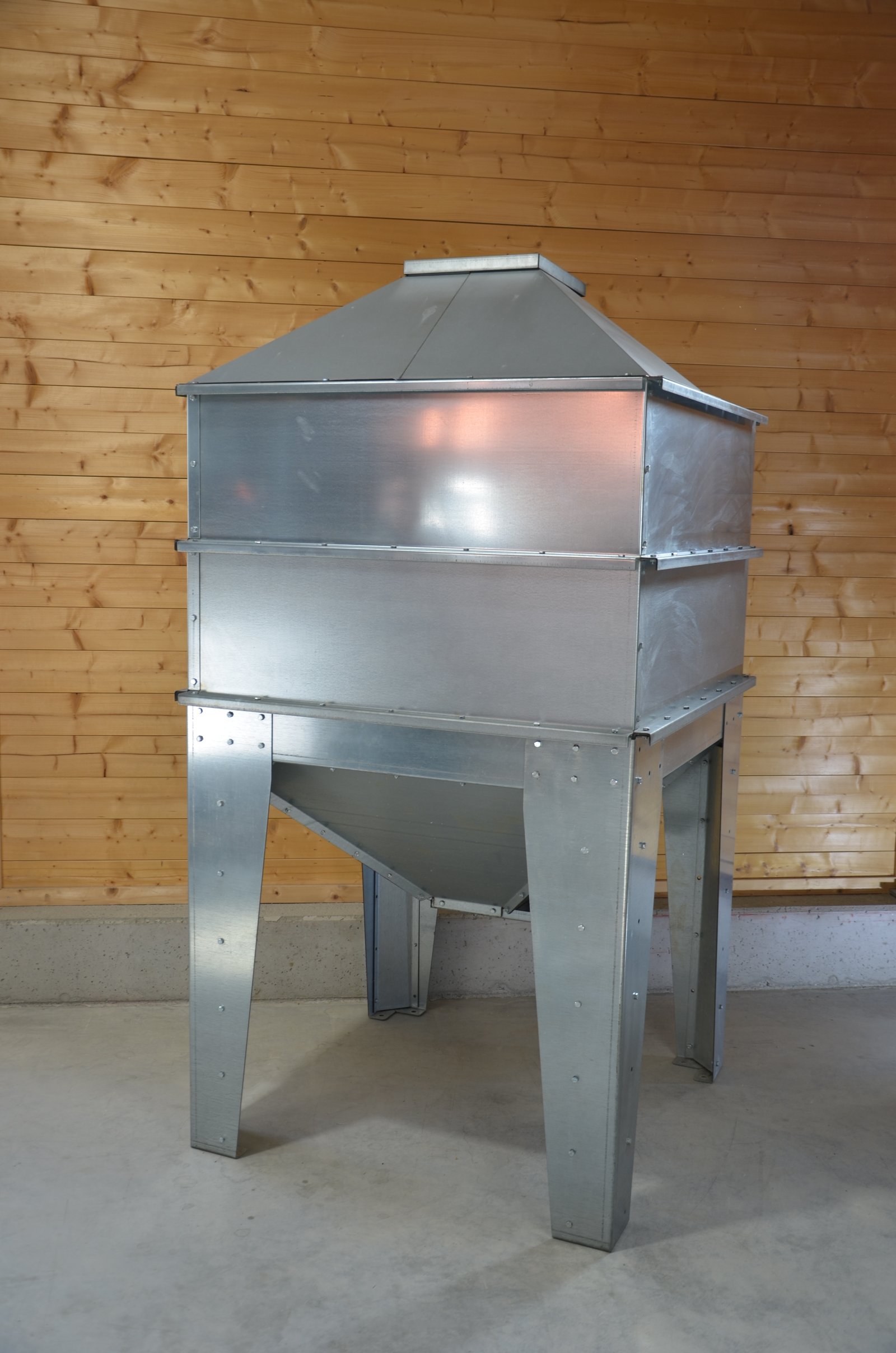

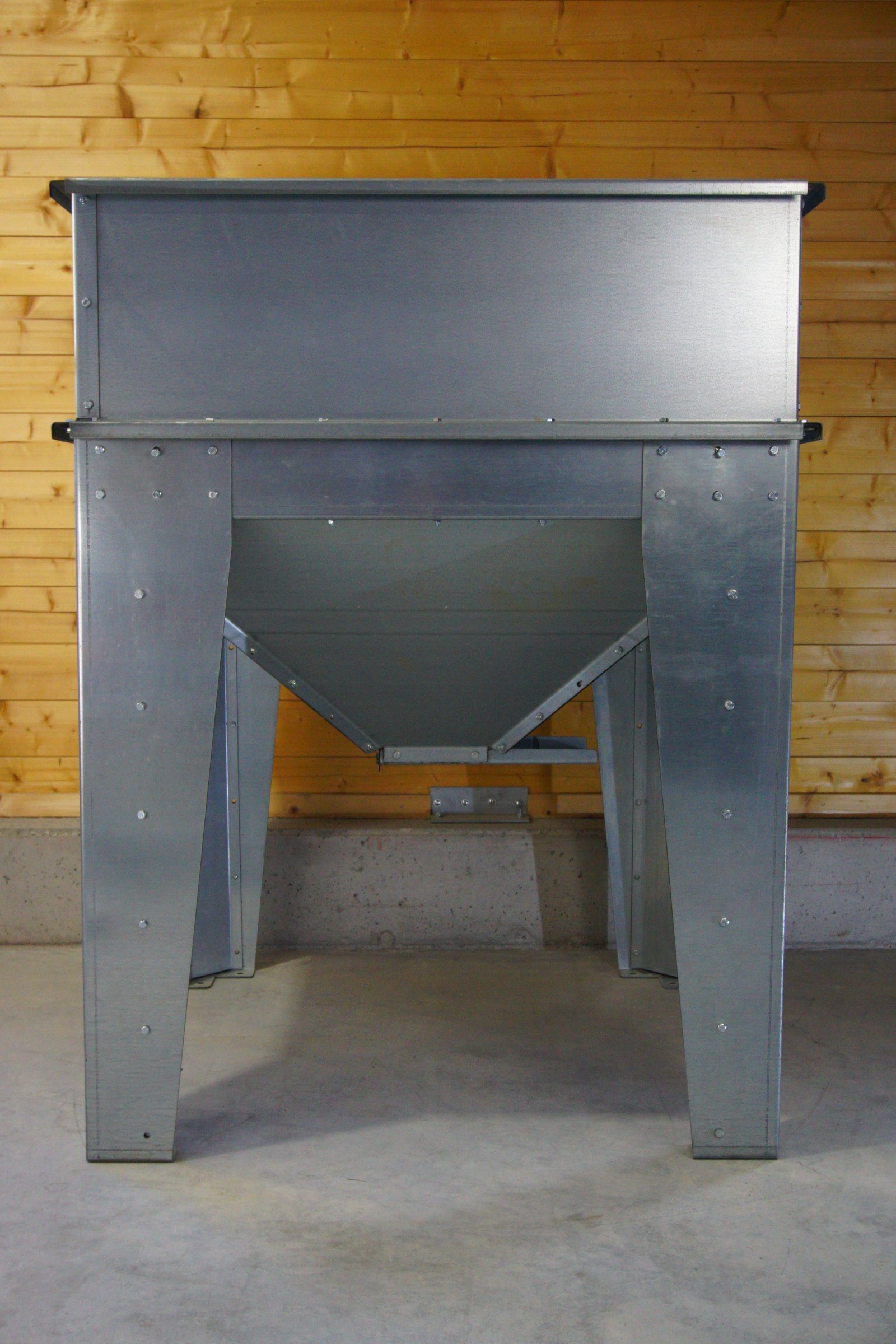

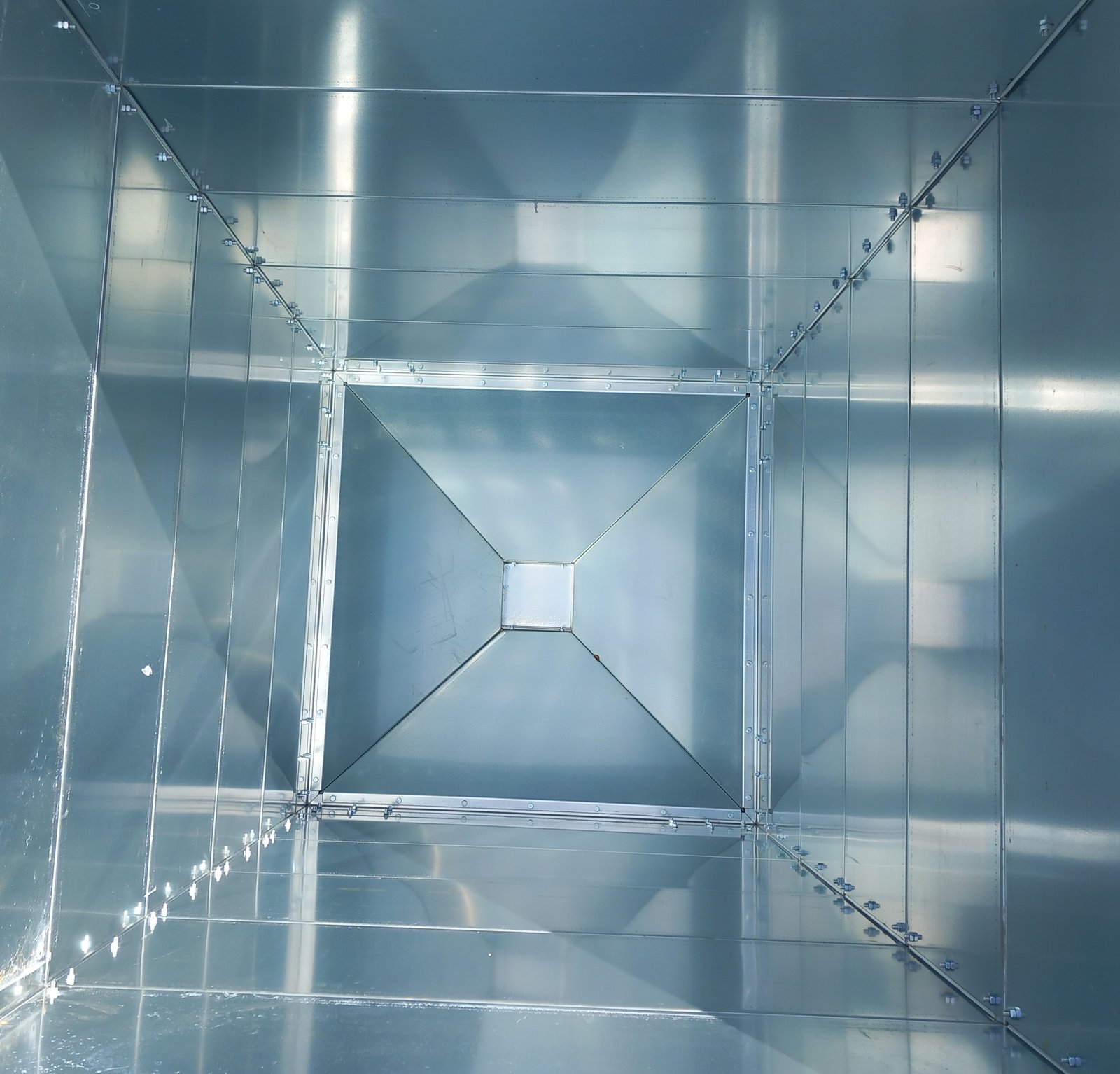

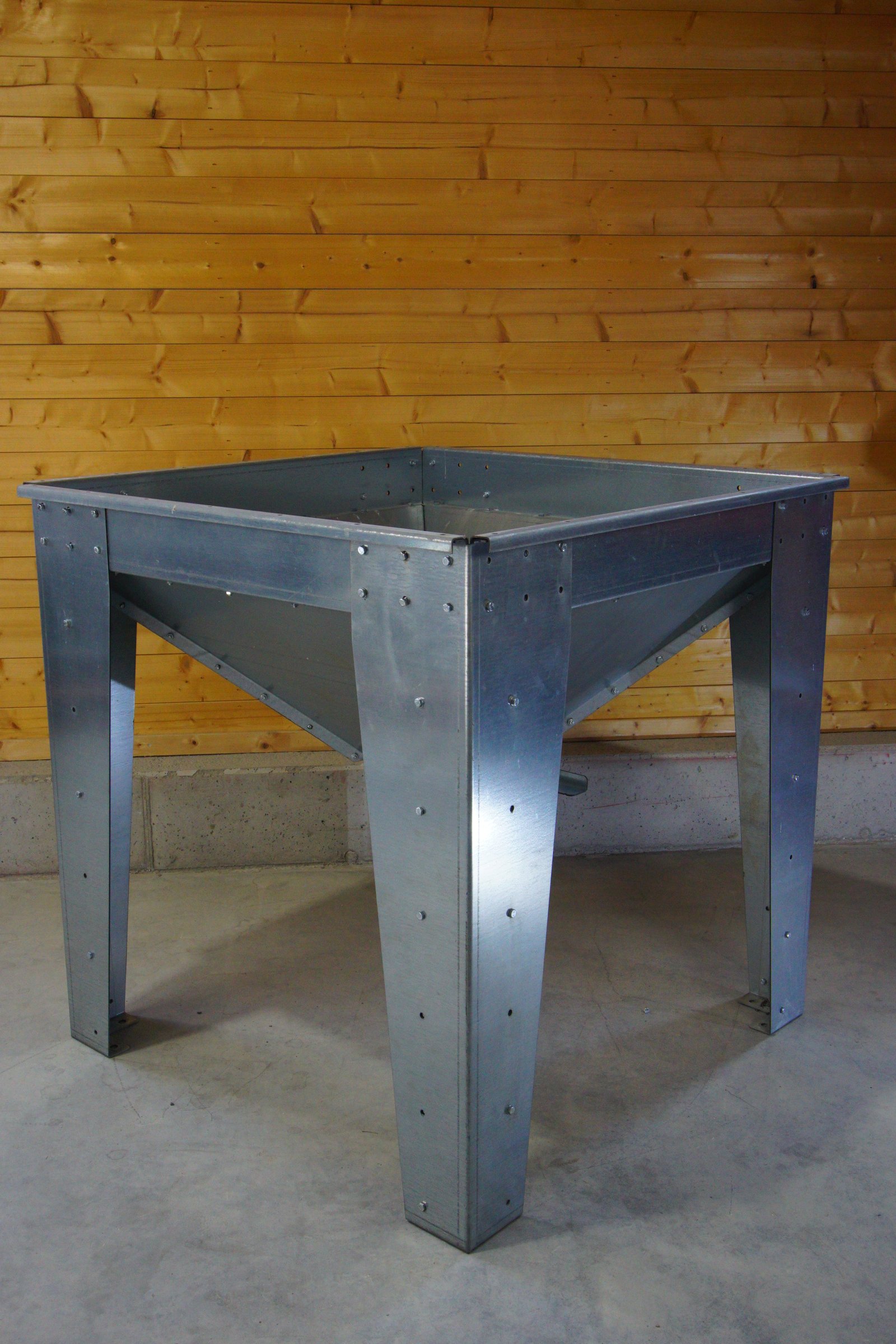

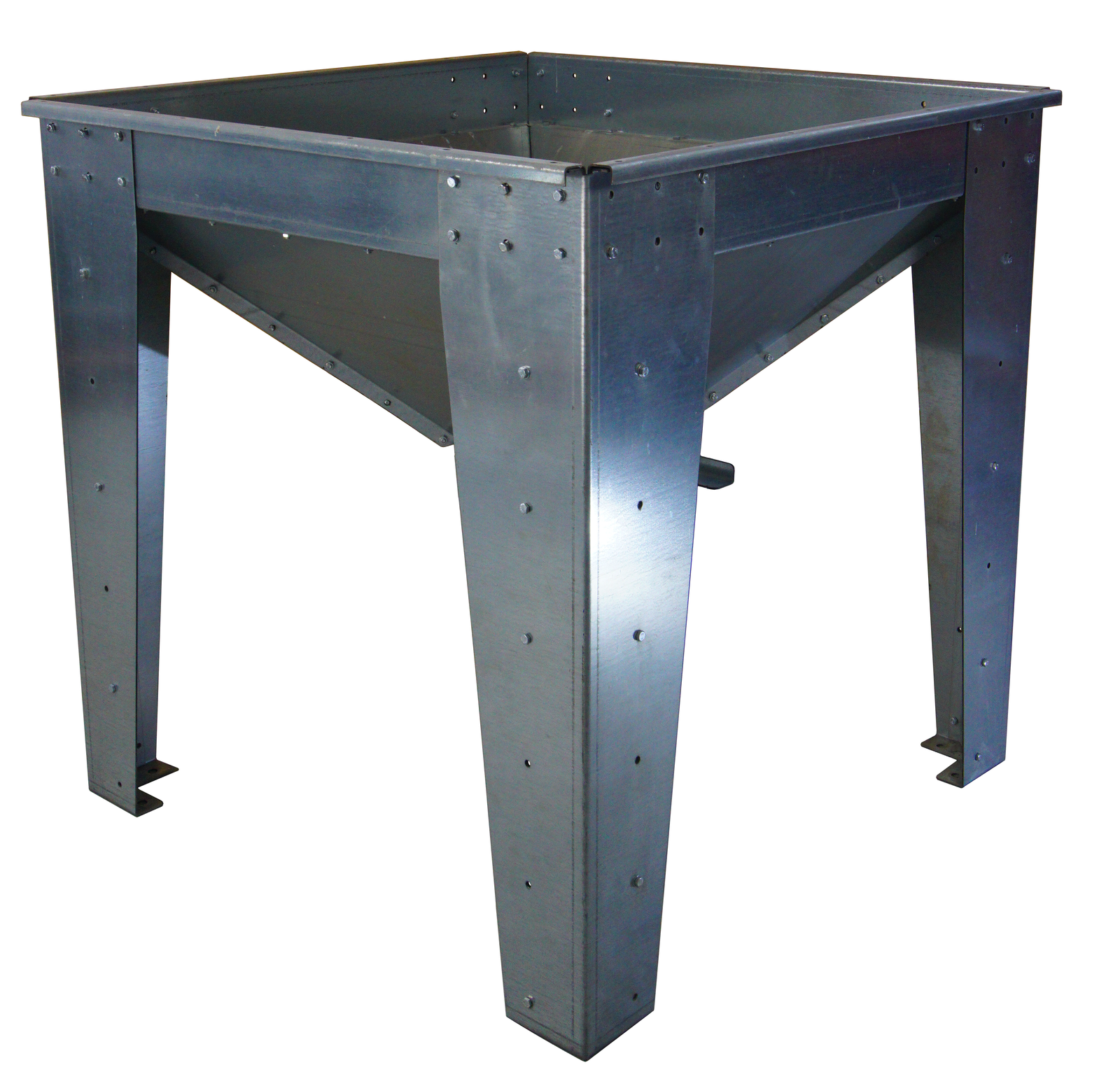

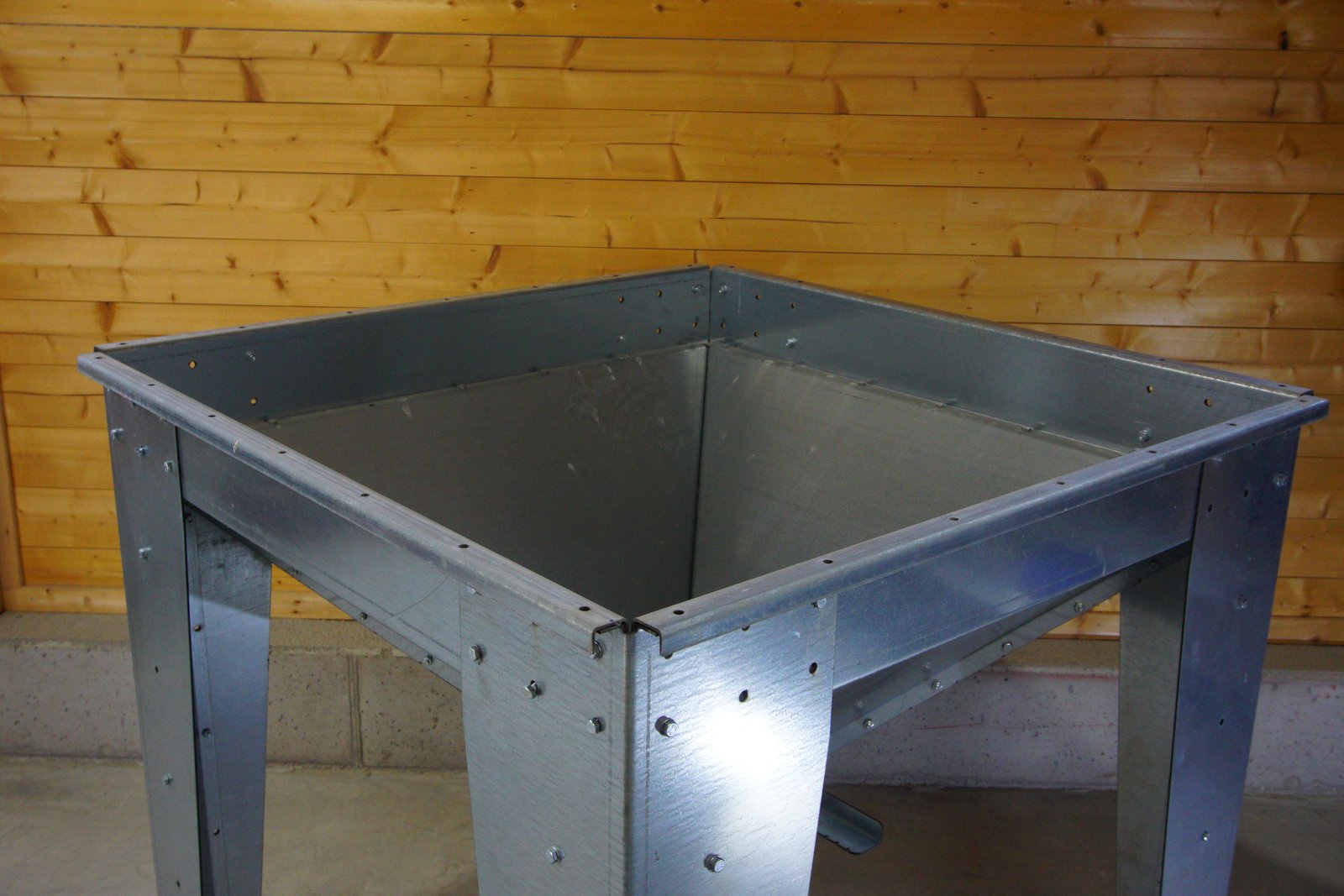

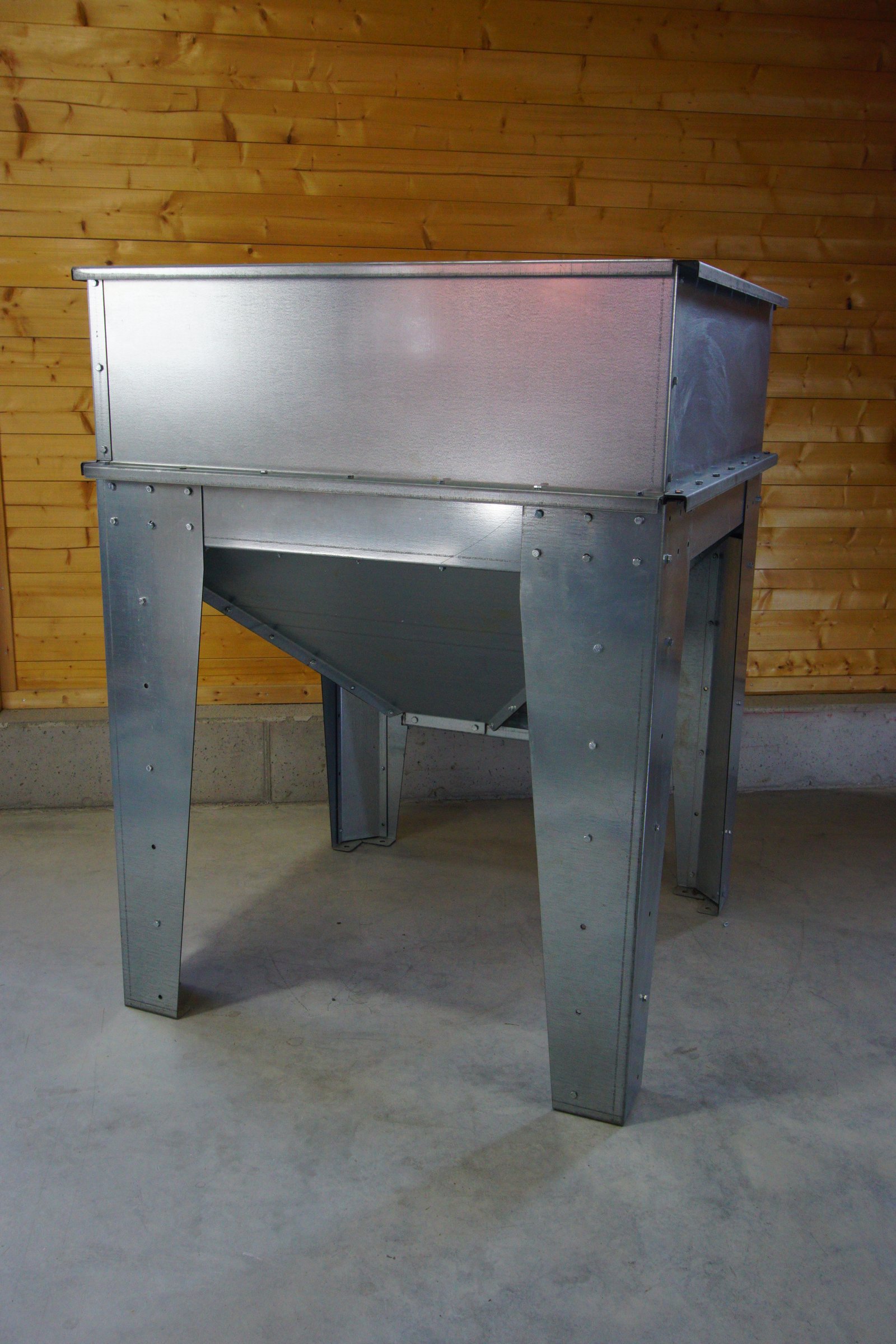

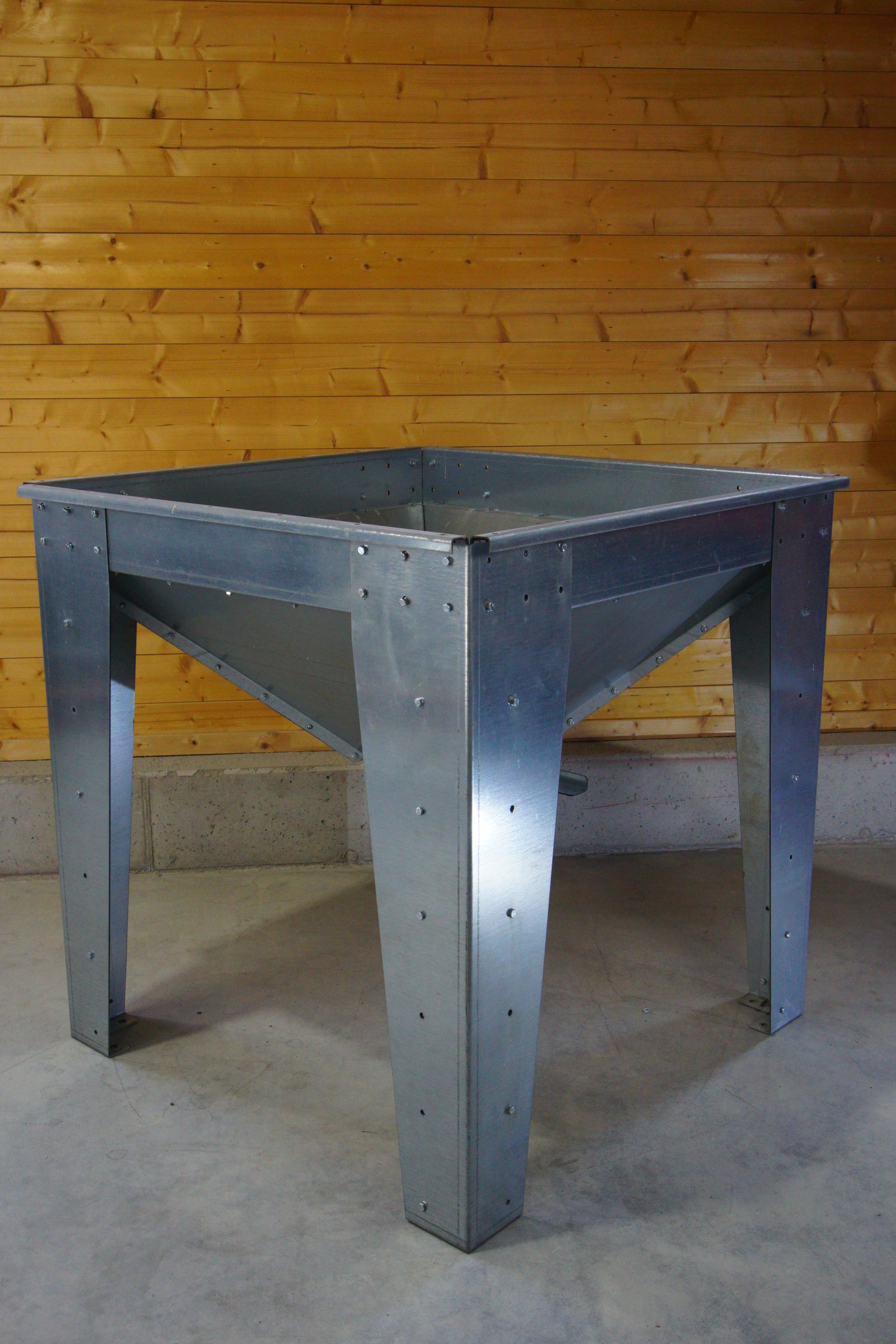

Silo Base Module

CERPUR CSI1B

Volume 0.35 m³, supports up to 6 extension frames
Made of galvanized steel sheet
Outlet sliding closure 16x18 cm
Delivered disassembled for cost-effective shipping

Excl. VAT

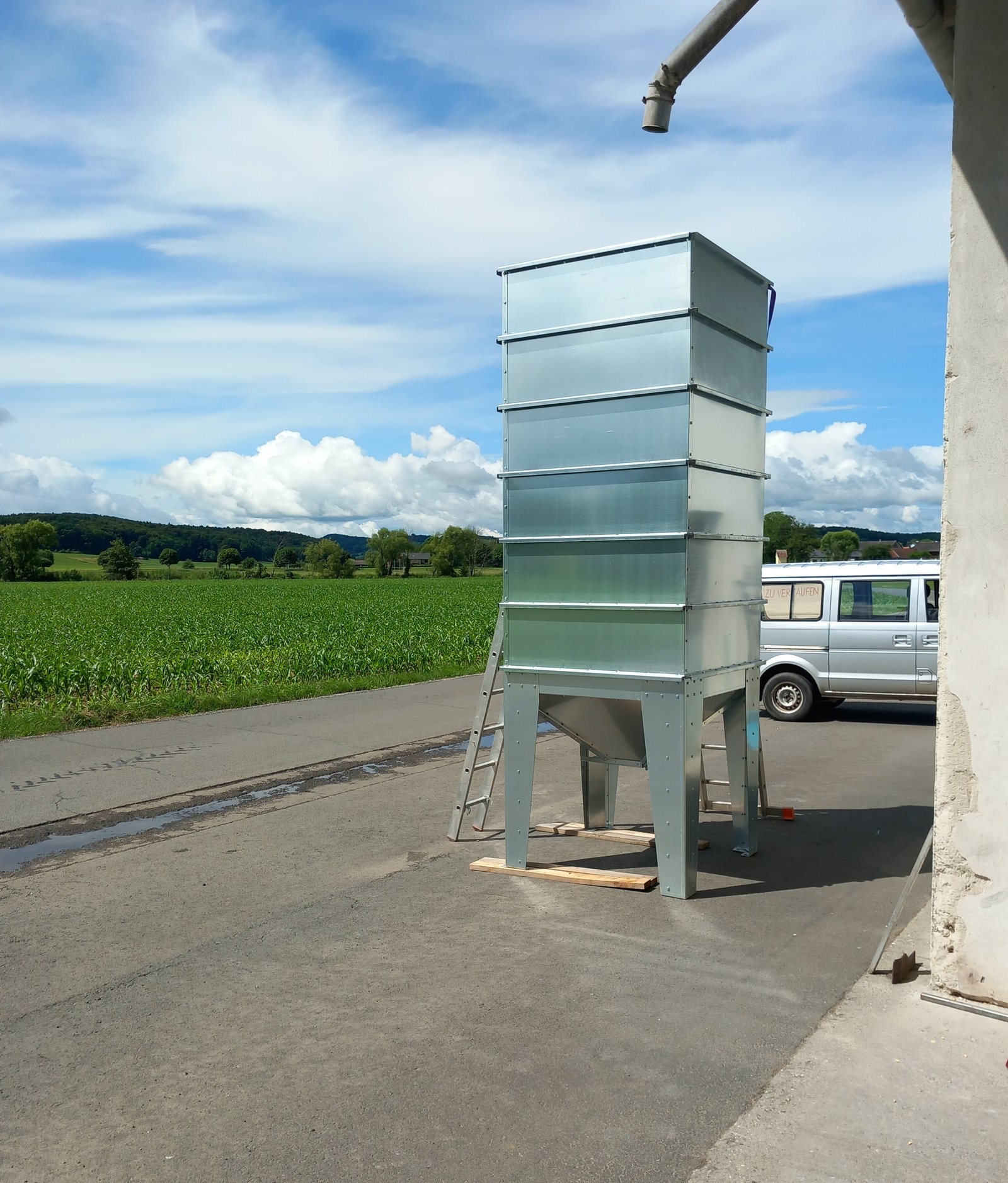

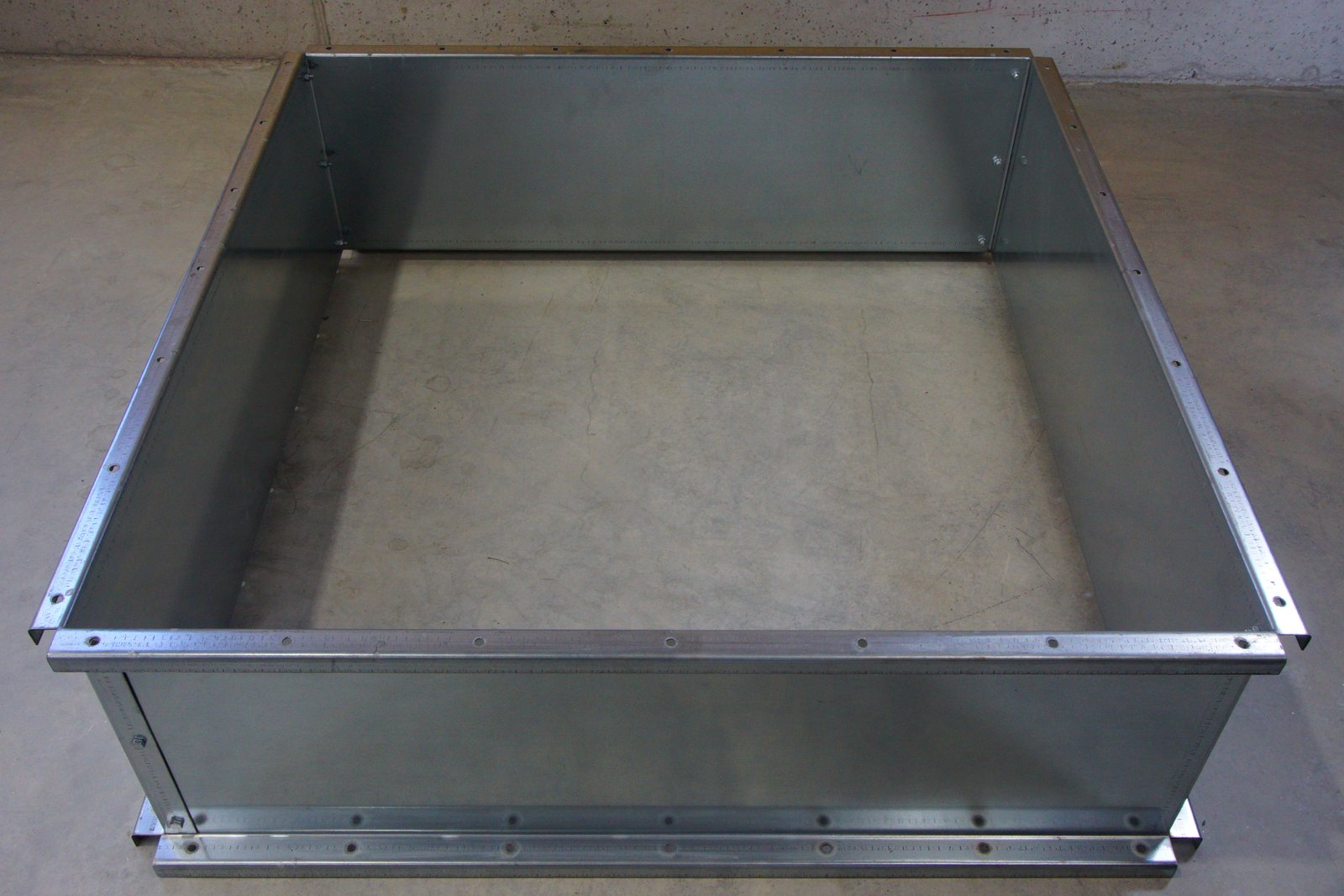

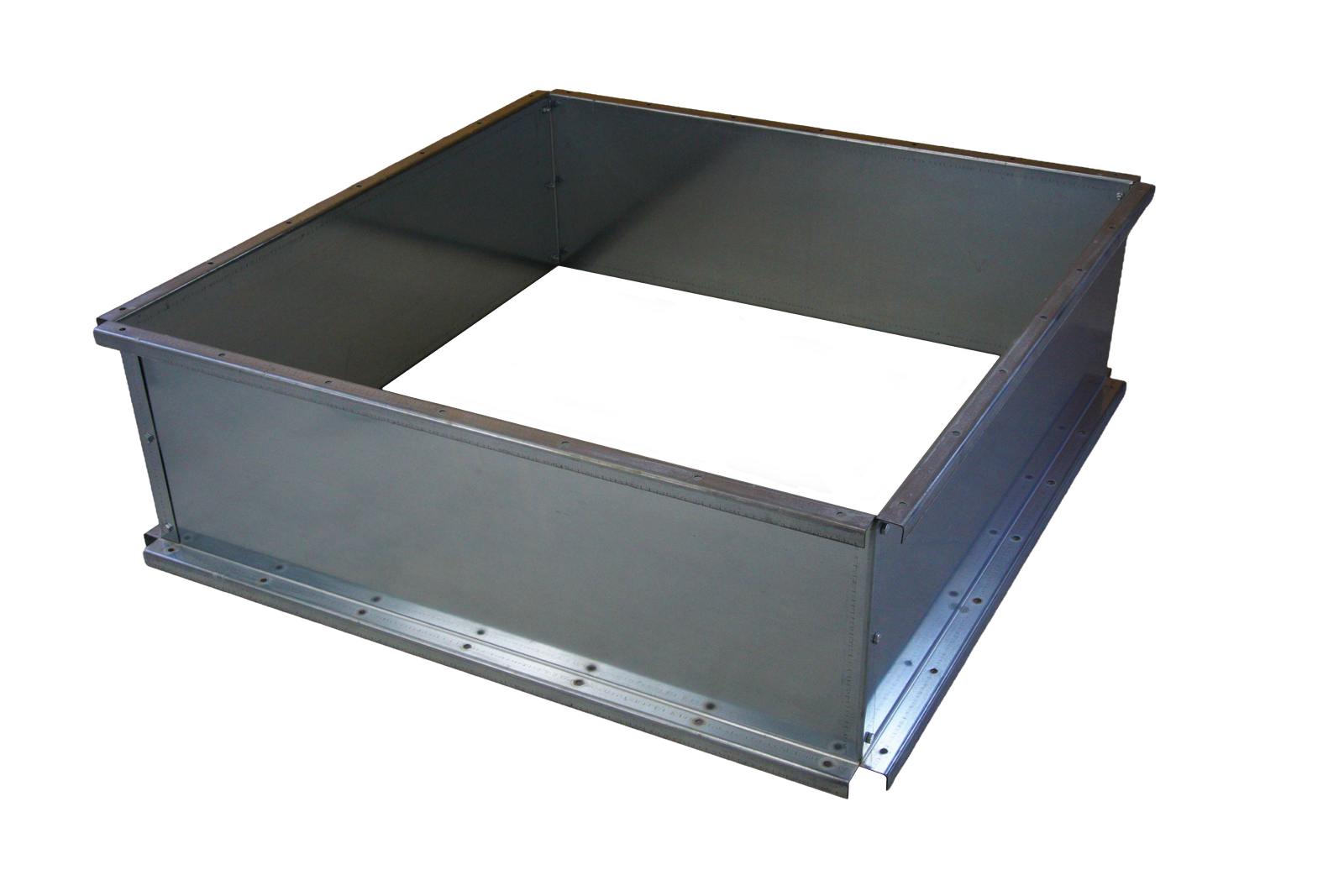

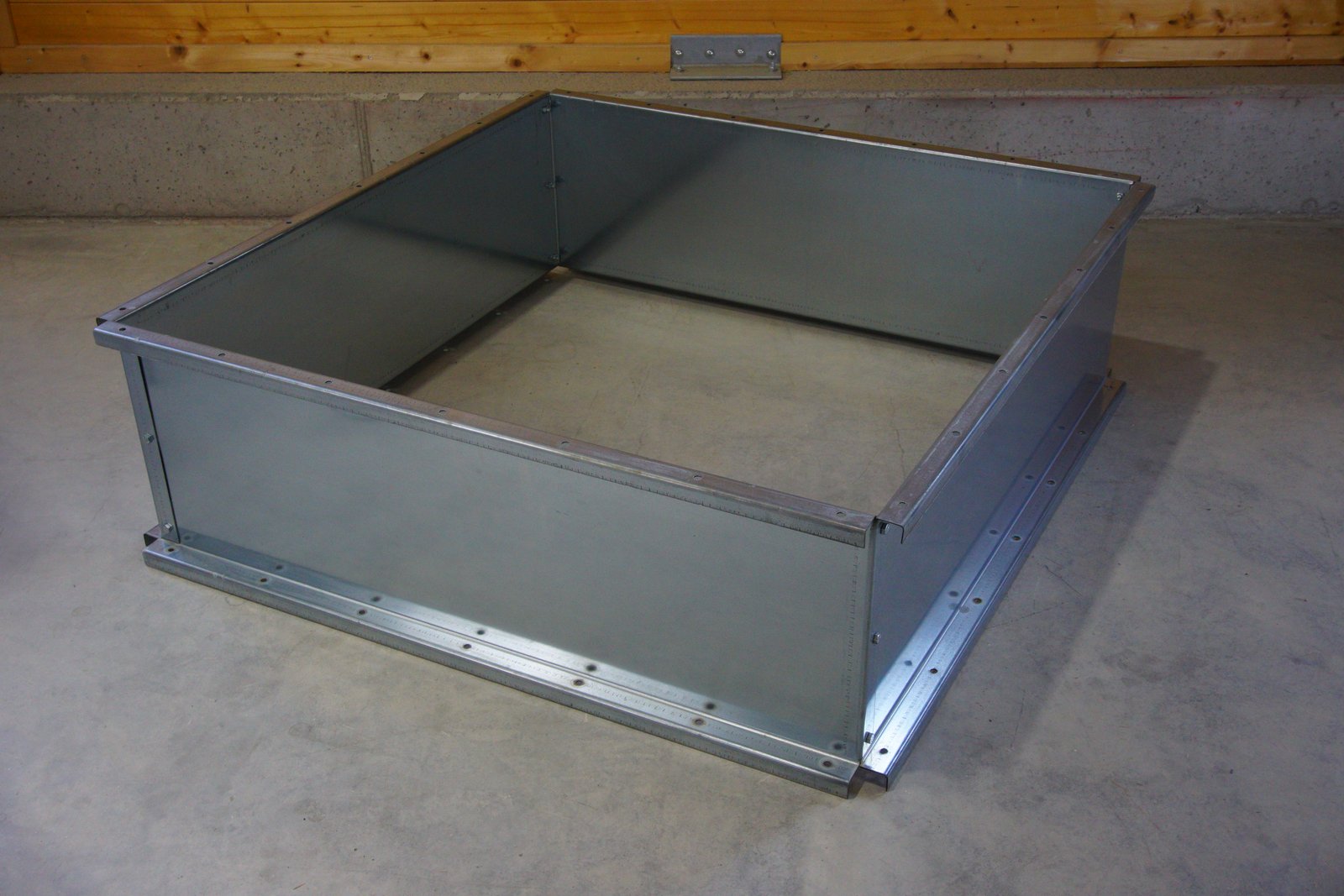

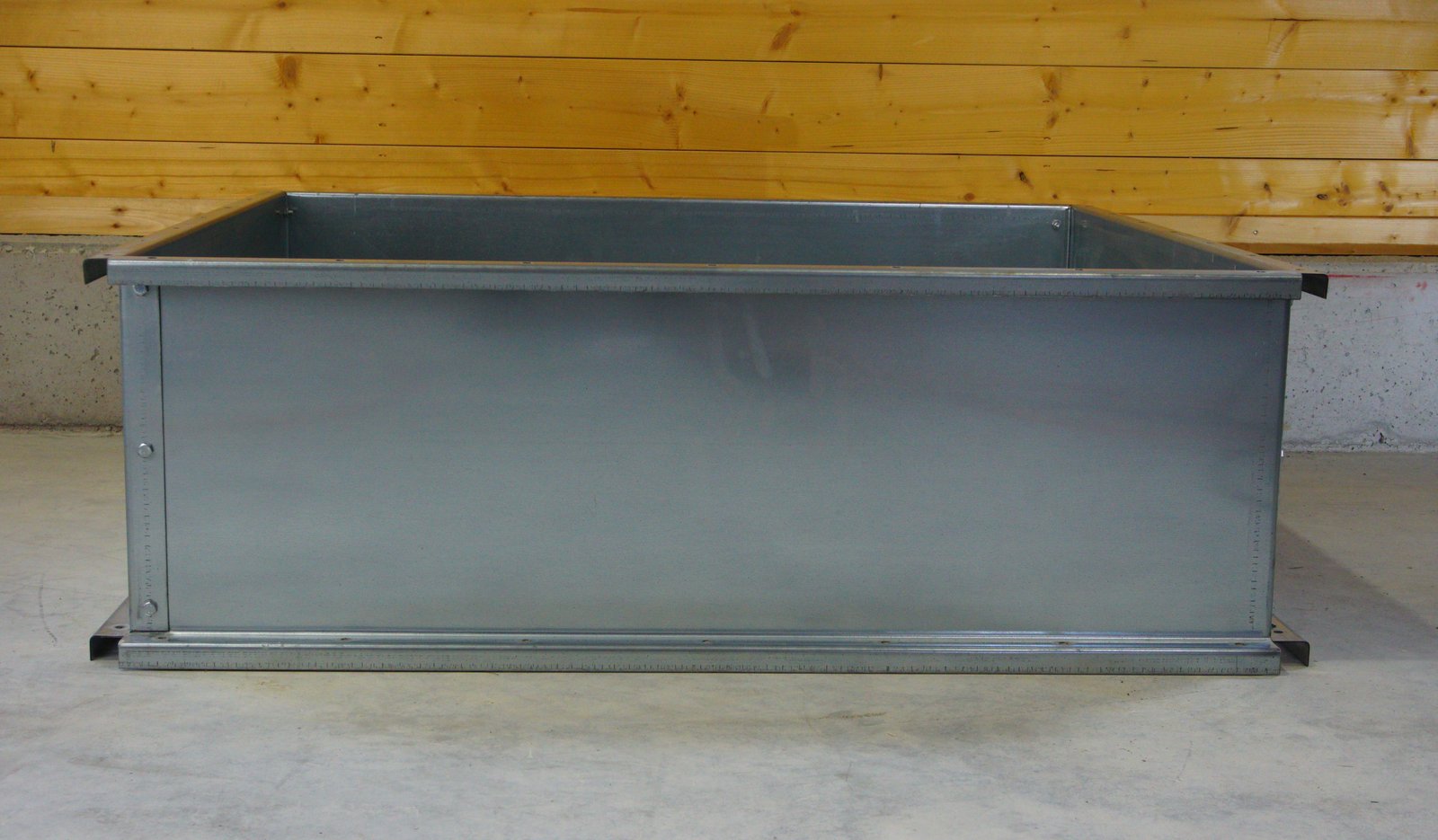

Silo Extension Frame

CERPUR CSI1A

Increases filling volume by 0.5 m³.
Maximum 6 extensions possible per silo
125x125x38 cm, 26 kg
Delivered disassembled for cost-effective shipping

Excl. VAT

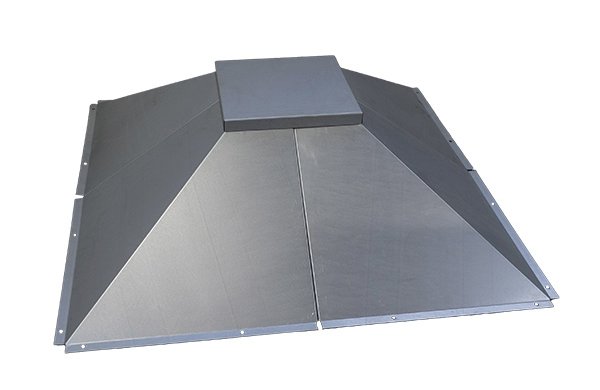

Silo Top Cover

CERPUR CSI1D

36x36 cm filling opening
Increases filling volume by 0.25 m³
125x125x34 cm, 21 kg
Delivered disassembled for cost-effective shipping

Excl. VAT

Inspired by 20 years of experience in grain cleaning, we develop grain cleaning machinery in Austria.

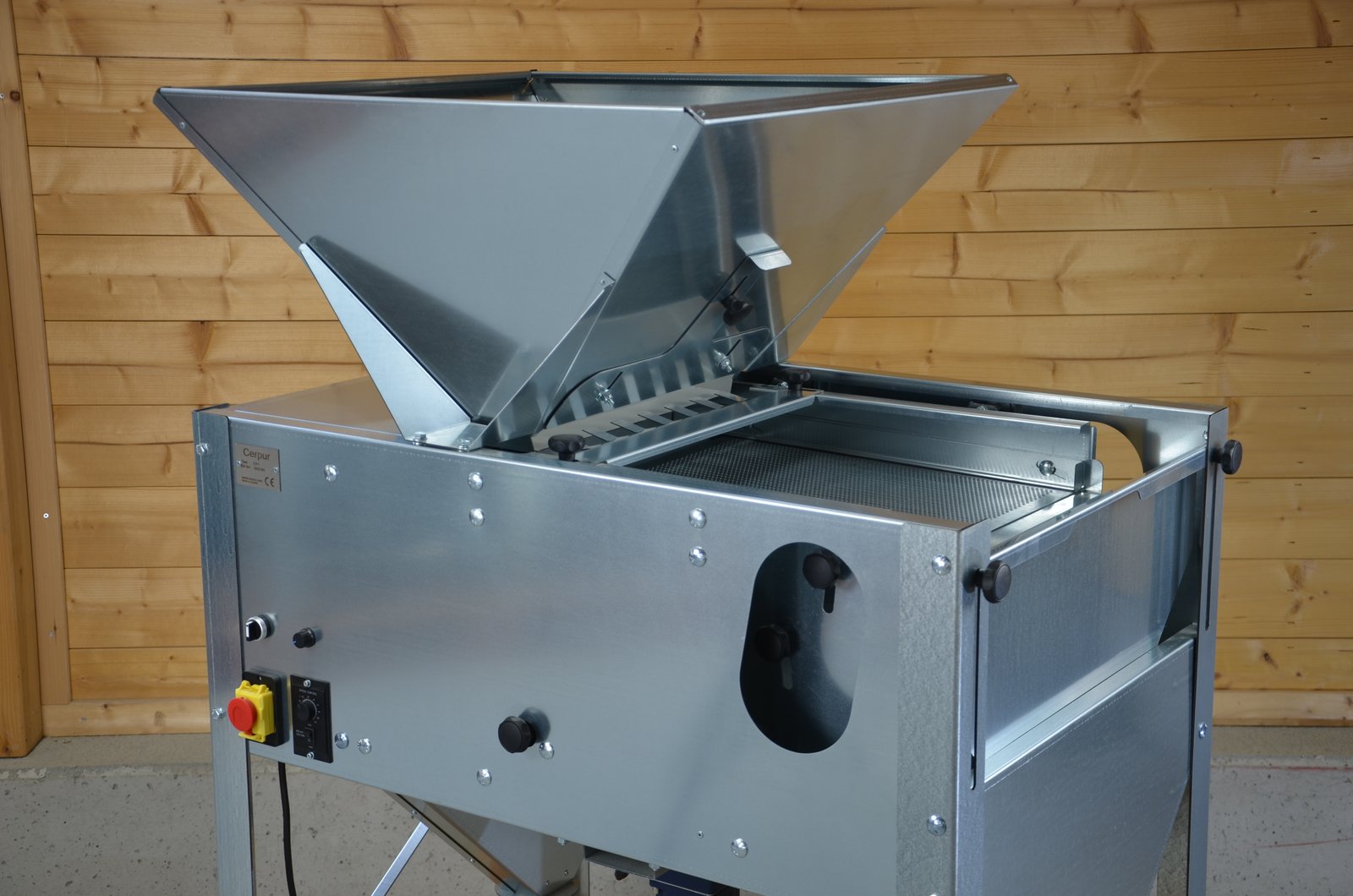

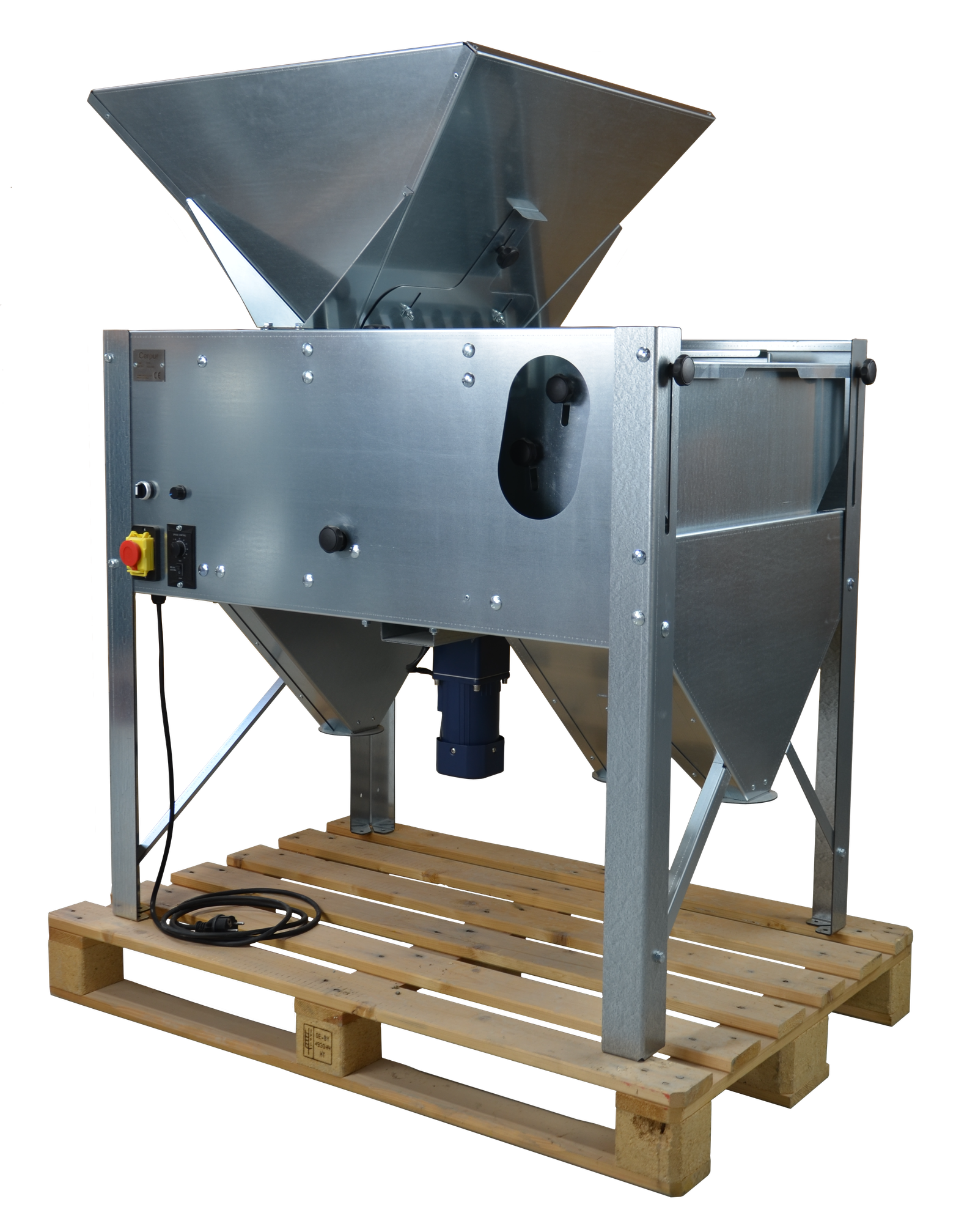

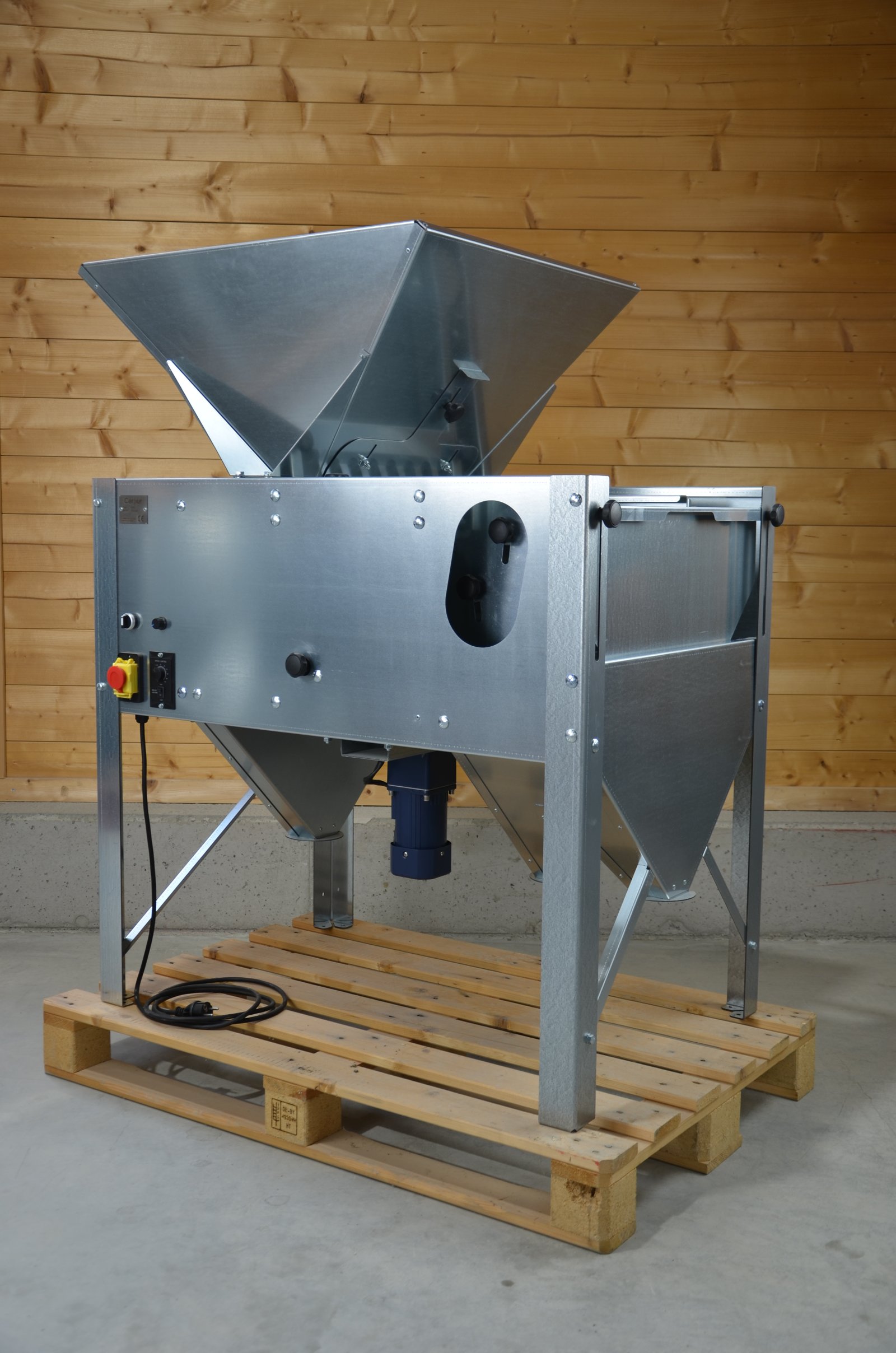

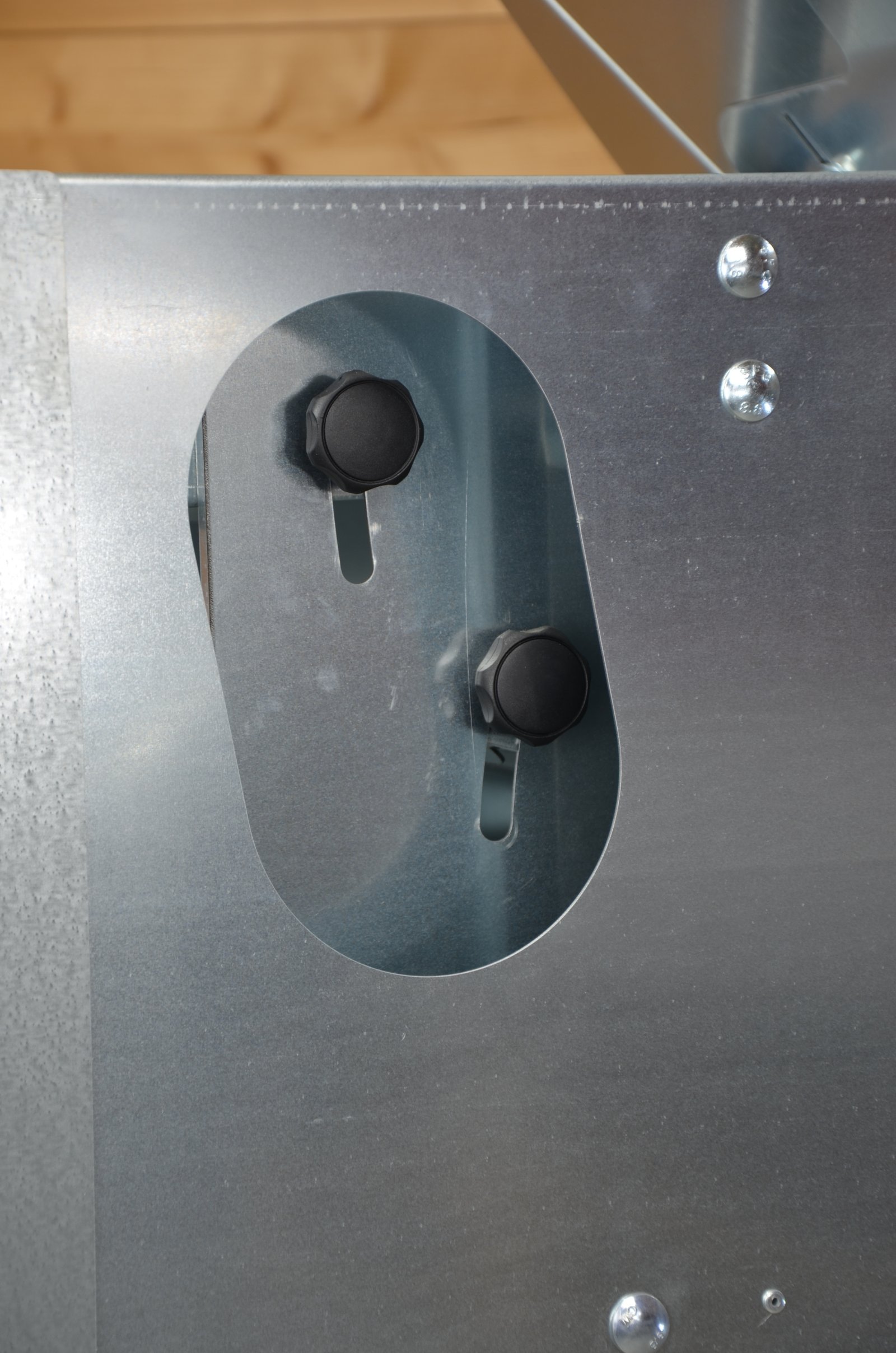

CERPUR CP1

Description

The CERPUR CP1 is delivered on a EURO pallet. The entire machine is made of galvanized sheet metal. The machine features an adjustable radial fan and motor for the sieve box. All cleaning parameters such as grain inflow, wind strength, sieve inclination, grain catching plate, and the knocker for bottom sieve cleaning can be adjusted. This allows for optimal cleaning quality for any material. Sieves can be changed without tools in just a few seconds.

Product Features

Ideal for quantities of 100-500 kg/h
Fast, tool-free sieve change

Scope of Delivery

CERPUR CP1 grain cleaner
Inlet hopper
Manual

Excl. VAT

Sieve for CERPUR CP1

Excl. VAT

Hole type

Size (mm)

Downloads

CP1 Manual DE

Technical Data

Functional Data

Cleaning performance	up to 1000 kg/h, depending on crop
Throughput speed	adjustable via sieve inclination
Operating temperature	-10 to +40 °C
Inlet hopper	114 l
Hopper outlet	self-cleaning with rake
Air sifter	adjustable radial fan
Sieve area	2 levels (500x500mm)
Sieve box	variable stroke frequency
Outlets	3 x DN 100 with flanged edge

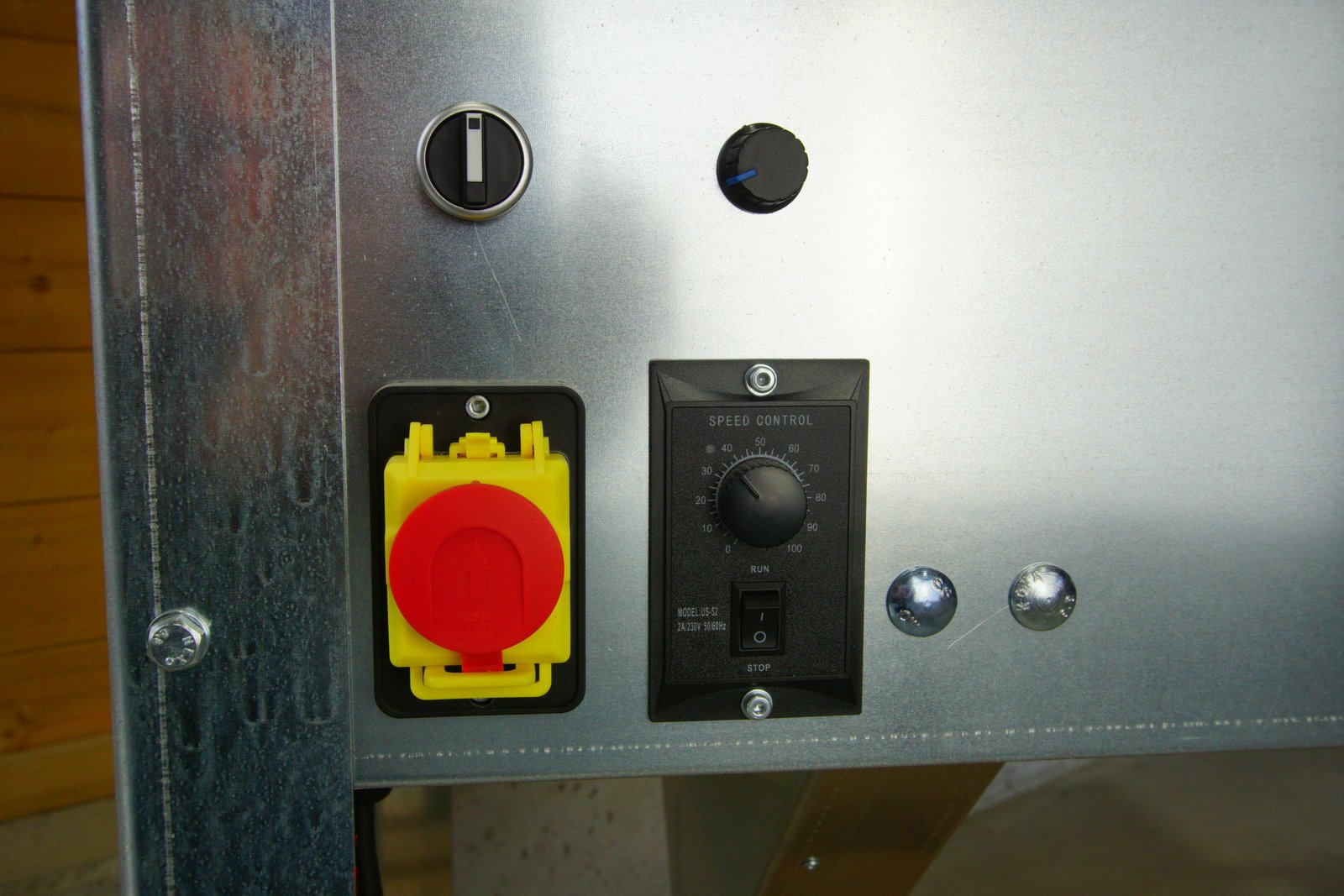

Electrical Data

Main switch	On/Off switch with integrated emergency stop function
Connection	230V / 0.37 kW
Power cable	3m with Schuko plug
Fan motor	90W, 230V, 50Hz, speed adjustable
Sieve motor	90W, 230V, 50Hz, speed adjustable

Physical Data

Dimensions	108 x 72 x 136 cm
Weight	95 kg
Material	Galvanized steel
Necessary minimum clearance	On both long sides: 400mm; Front: 500mm; Back: 100mm; Top: 100mm
